Product illustration may differ in individual cases.

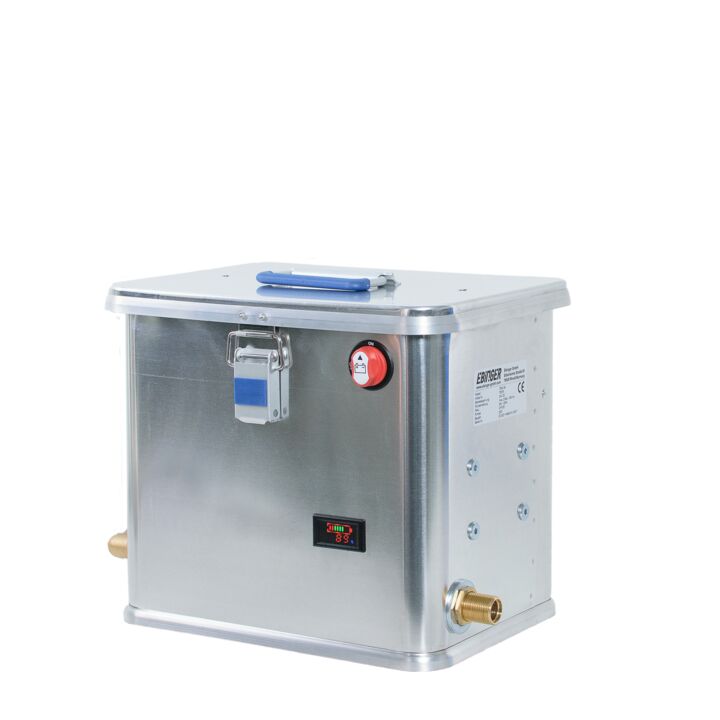

Battery pump unit TBW 36-12

Article no.: 76376
Product illustration may differ in individual cases.

• Pressure max. 2.5 bar
• Flow rate up to 36 l/min
• Electronic pressure regulator

1.725,50 €
incl. VAT plus 83,30 € shipping
Shipping in 3-5 days
Questions about the product?
HS-Code: 84139100
Country of origin: DE
Shipping weight: 15.9 kg
Back to overview

Technical data

  • Engine 12/24V without battery
  • Delivery rate 36l

Description

The portable pump unit is also available for direct connection to an external power supply in 12V and 24V.

Features:
• Pressure max. 2.5 bar
• Flow rate up to 36 l/min
• Electronic pressure regulator
• Connections ¾" M
• Suction filter
• 1 m connection cable (without plug)
• 30A fuse
• Weight: 11kg
• Dimensions 430x360x340mm (LxWxH)

Downloads

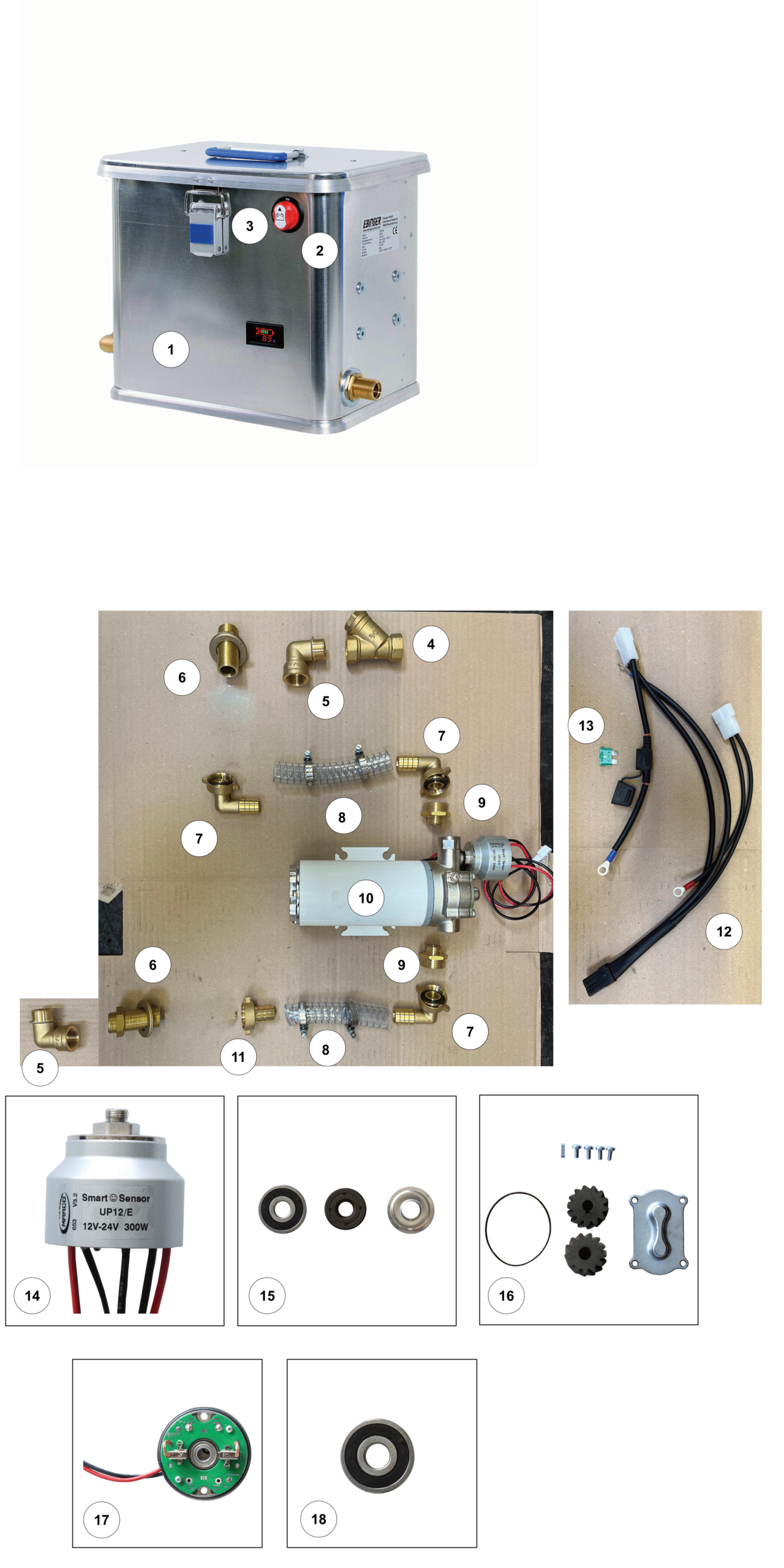

Replacement parts

# Article no. Quantity
1 EB000458 1
2 E000120 1
3 E000271 1
4 EB000619 1
5 EB000721 1
6 EB000722 1
7 EB000305 1
8 KIT000003 1
9 EB000522 1
10 KIT000012 1
11 130.362 1
12 KIT000004 1
13 N000077 1
14 288-R6400059 1
15 288-R6400094 1
16 288-R6400088 1
17 288-R6400078 1
18 EF000331 1
