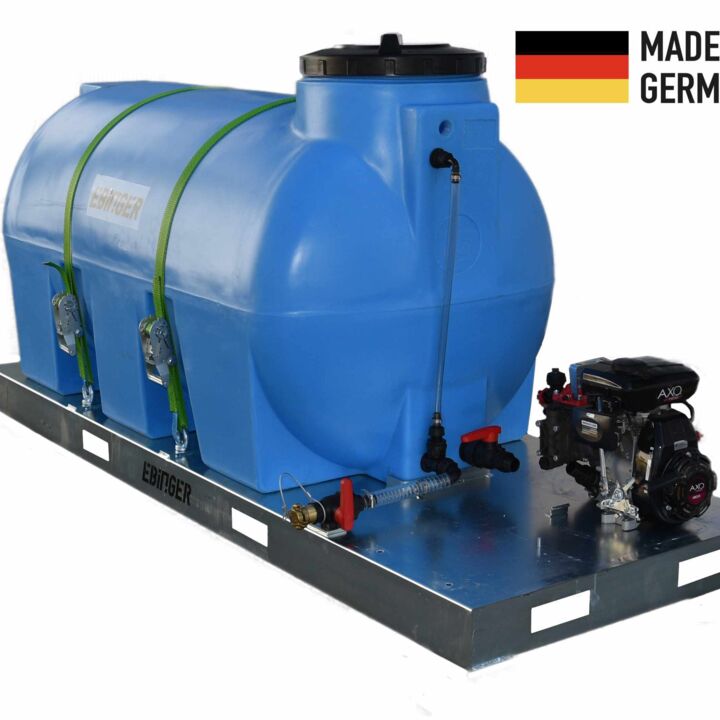

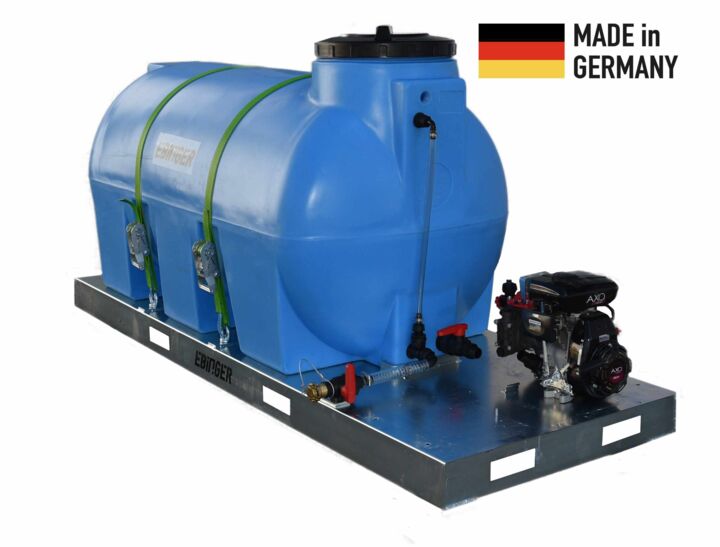

The BW 1000 irrigation unit from EBINGER is a powerful and versatile solution for professional and flexible irrigation. It is ideal for mounting on vehicles, vans, trailers or forklift trucks and can be customised to your individual requirements.
Main features:
• Honda petrol pump - 140l/min flow rate, 36m delivery head, 3-way tap system for filling at the water point
• tank capacity: 1000 l
• dimensions: 230x87x137cm LxWxH
- Sturdy, galvanised frame
• lugs for transport by forklift truck on all sides
• 4 eyelets for attaching transport straps
• level indicator on the tank
• suction line (7m) with ball valve and pressure line (1m) with MS quick coupling
Equipment options:
• hose reel: manual, spring-loaded, with electric or hydraulic drive up to 2" hose
• mounting table for hose reel
• filling spout with free flow path
• surge protection balls - stabilise the liquid load and minimise sloshing and surge forces
Areas of application:
• agriculture
• gardening and landscaping
• industry and municipal applications
Advantages at a glance:
• individually configurable
• easy handling
• Mobile & robust
• Versatile in use
