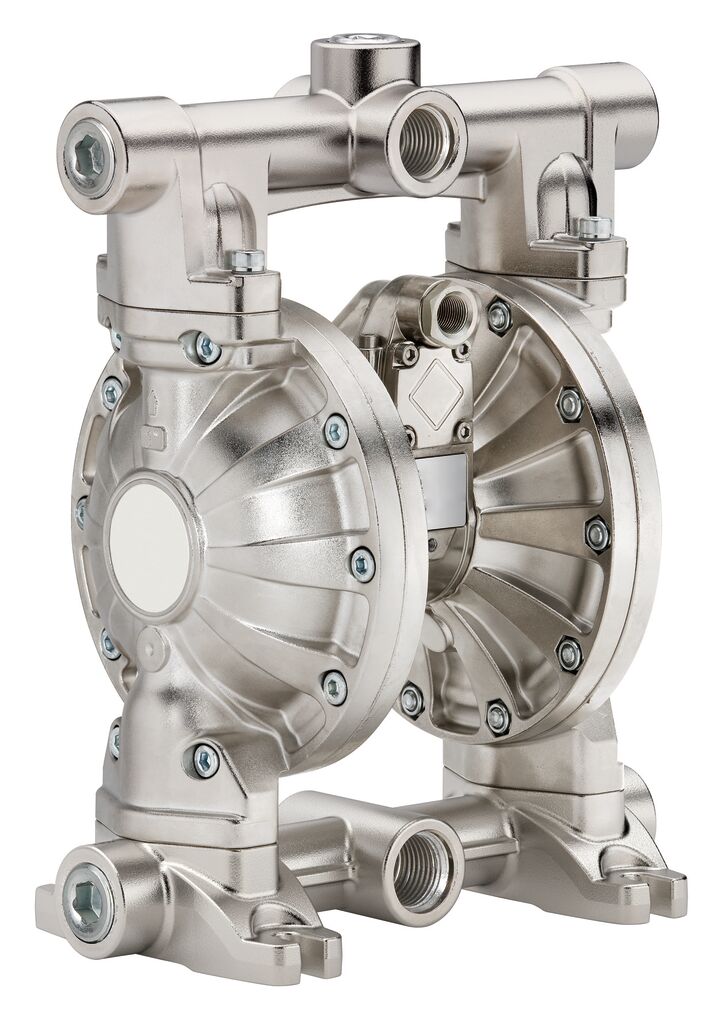

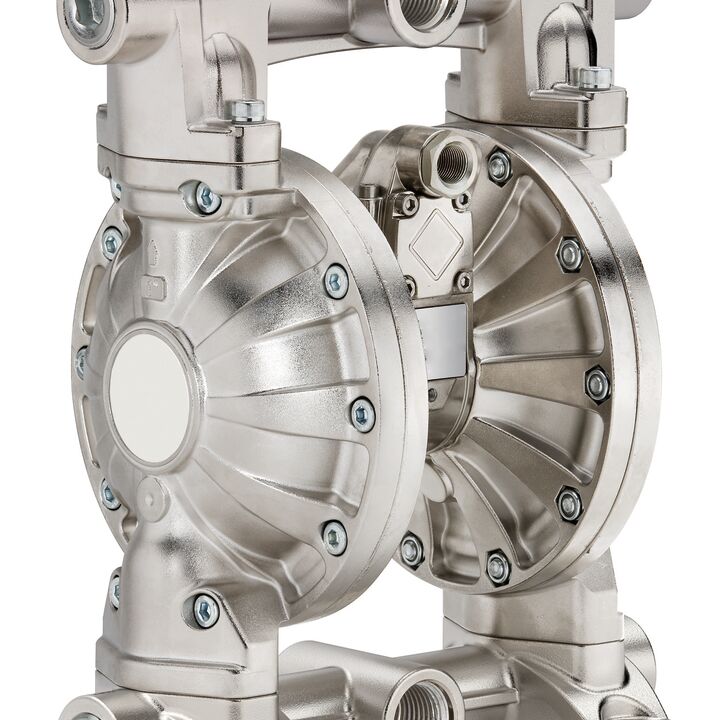

Product illustration may differ in individual cases.

Pneumatic diaphragm pump 1000-AB-MULTI

Article no.: 7.450.100
Product illustration may differ in individual cases.
998,00 €
incl. VAT plus 11,78 € shipping
Delivery time 6-14 days
HS-Code: 84138100
Country of origin: IT
Shipping weight: 13.5 kg
Back to overview

Technical data

  • Engine Diaphragm pump
  • Delivery rate 170l/min
  • Material Aluminium
  • Material Membran EPDM
  • Max. Suction height (filled) 4,5m
  • Max. Suction height (filled) 7,5m
  • Max. Solid size 3mm
  • Max. Liquid temperature 100°C
  • Volume 75dB
  • Max. Air consumption 1,4m³/min
  • Working compressed air 2-6bar
  • Eingang Druckluft 3/8“ F
  • Ausgang Druckluft 1/2“ F
  • Liquid connection inlet 1" F (4x)
  • Outlet Fluid connection 1" F (5x)

Description

Housing + motor aluminum, membrane EPDM, inlet 1"F (4x), outlet 1"F (5x), max. 8bar - 170ltr./min.
