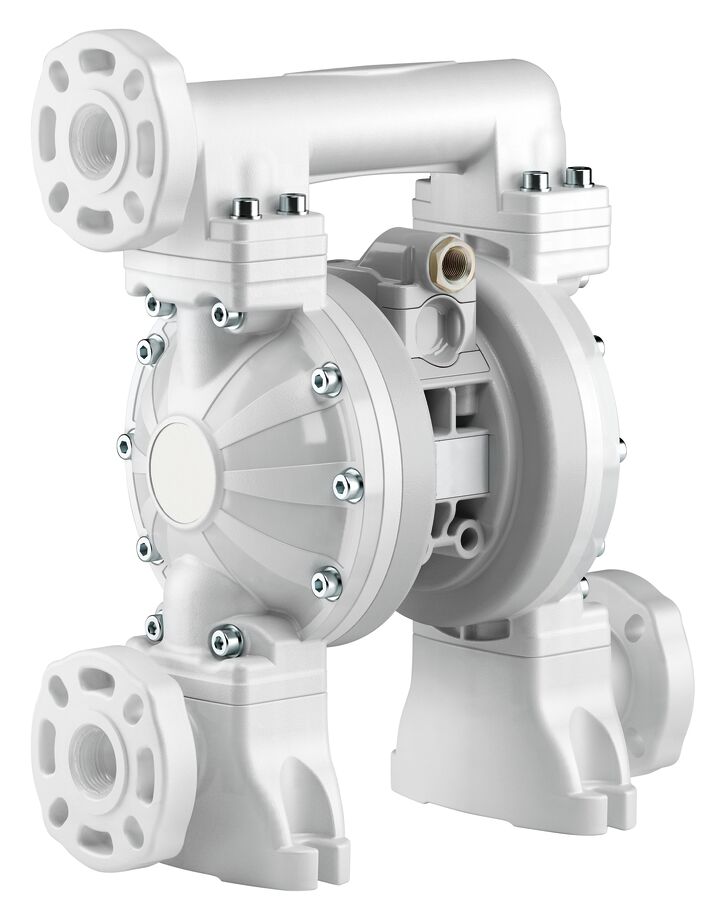

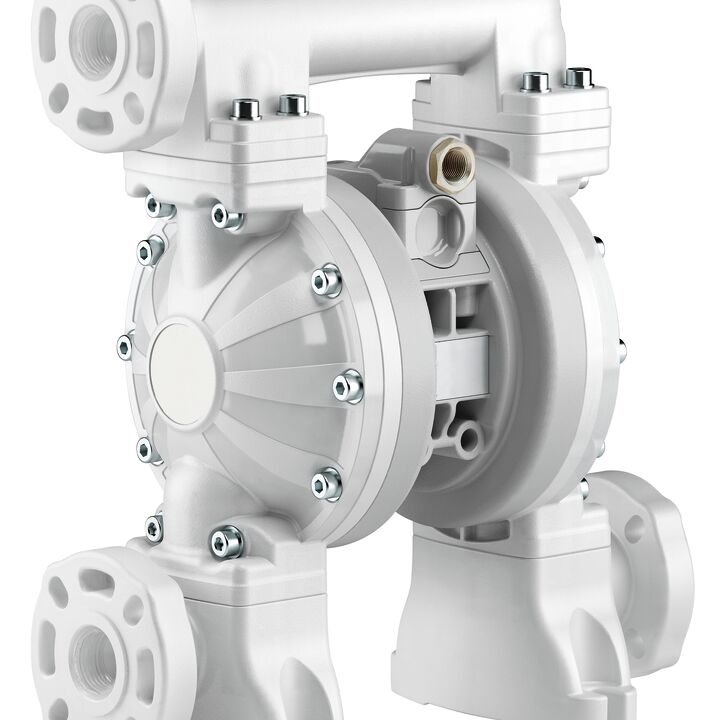

Pneumatic diaphragm pump 1000-PPB-DUO

Article no.: 7.405.110
Product illustration may differ in individual cases.
929,00 €
incl. VAT plus 11,78 € shipping
Delivery time 6-14 days
HS-Code: 84138100
Country of origin: IT
Shipping weight: 12.0 kg
Back to overview

Technical data

  • Engine Diaphragm pump
  • Delivery rate 145l/min
  • Material Polypropylene
  • Material Membran Hytrel
  • Max. Suction height (filled) 5m
  • Max. Suction height (filled) 7,5m
  • Max. Solid size 3mm
  • Max. Liquid temperature 65°C
  • Volume 78dB
  • Max. Air consumption 1,1m³/min
  • Working compressed air 2-6bar
  • Eingang Druckluft 3/8“ F
  • Ausgang Druckluft 3/7“ F
  • Liquid connection inlet ANSI 150 - DIN PN 10 JIS 10 K 1" (25mm) DUO
  • Outlet Fluid connection ANSI 150 - DIN PN 10 JIS 10 K 1" (25mm)

Description

Housing + motor polypropylene, diaphragm Hytrel, inlet ANSI 150-DIN PN10 - JIS 10K, outlet ANSI 150-DIN PN10 - JIS 10K, max. 8bar - 145ltr./min.
