Product illustration may differ in individual cases.

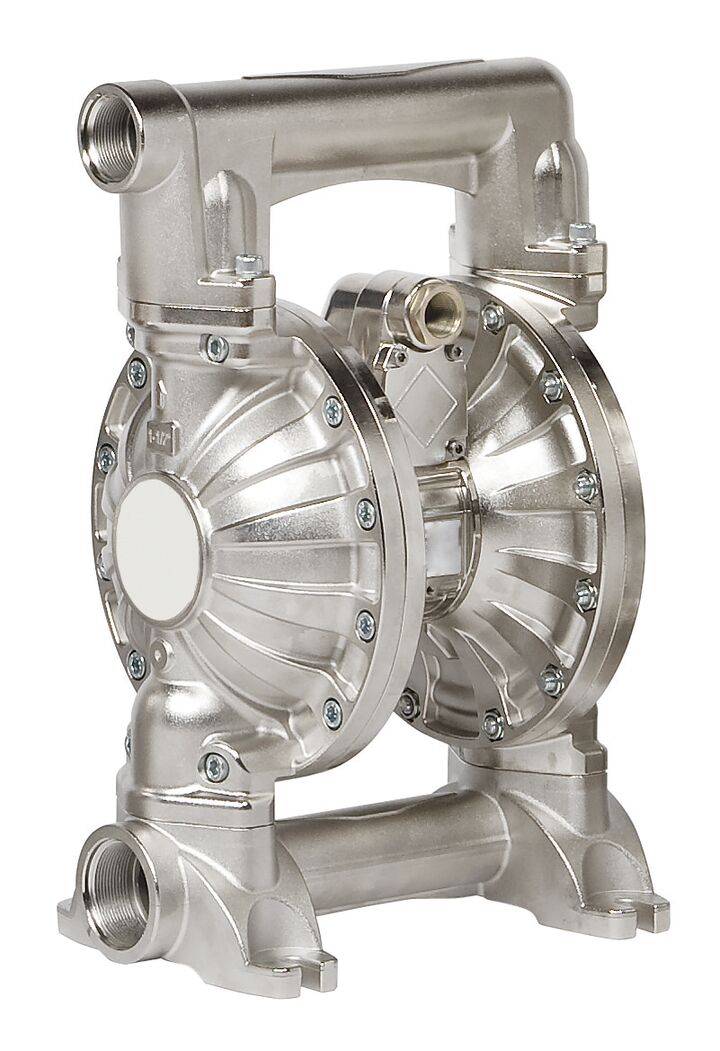

Pneumatic diaphragm pump 1120-AB

Article no.: 7.650.130
Product illustration may differ in individual cases.
1.502,00 €
incl. VAT plus 77,35 € shipping
Delivery time 6-14 days
HS-Code: 84138100
Country of origin: IT
Shipping weight: 23.5 kg
Back to overview

Technical data

  • Engine Diaphragm pump
  • Delivery rate 480l/min
  • Material Aluminium
  • Material Membran Santoprene
  • Max. Suction height (filled) 5m
  • Max. Suction height (filled) 7,5m
  • Max. Solid size 5,5mm
  • Max. Liquid temperature 100°C
  • Volume 75dB
  • Max. Air consumption 3,4m³/min
  • Working compressed air 2-6bar
  • Eingang Druckluft 3/4“ F
  • Ausgang Druckluft 1“ F
  • Liquid connection inlet 1 1/2" F
  • Outlet Fluid connection 2" F

Description

Housing + motor aluminum, membrane Santoprene, inlet 2"F, outlet 1 1/2"F, max. 8bar - 480ltr./min.

Downloads
