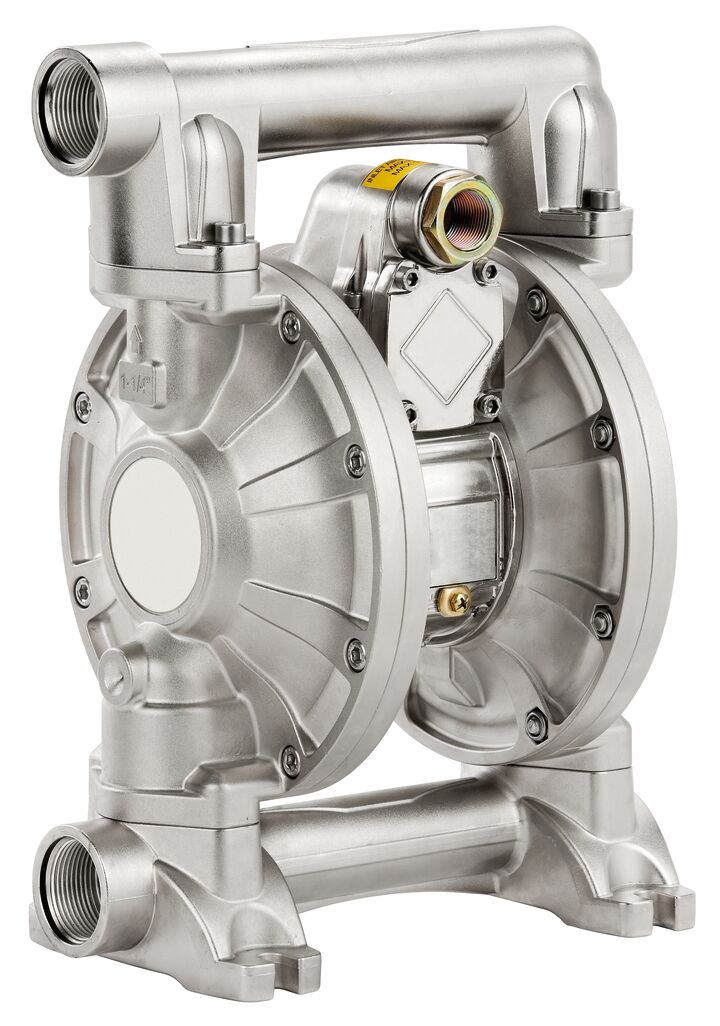

Pneumatic diaphragm pump 1140-AB

Article no.: 7.550.110
Product illustration may differ in individual cases.
1.038,00 €
incl. VAT plus 77,35 € shipping
Delivery time 6-14 days
HS-Code: 84138100
Country of origin: IT
Shipping weight: 15.0 kg
Back to overview

Technical data

  • Engine Diaphragm pump
  • Delivery rate 200l/min
  • Material Aluminium
  • Material Membran Hytrel
  • Max. Suction height (filled) 4,5m
  • Max. Suction height (filled) 7,5m
  • Max. Solid size 3mm
  • Max. Liquid temperature 100°C
  • Volume 75dB
  • Max. Air consumption 1,8m³/min
  • Working compressed air 2-6bar
  • Eingang Druckluft 3/4“ F
  • Ausgang Druckluft 1“ F
  • Liquid connection inlet 1 1/4" F
  • Outlet Fluid connection 1 1/4" F

Description

Housing + motor aluminum, membrane Hytrel, inlet 1 1/4"F, outlet 1 1/4"F, max. 8bar - 200ltr./min.
