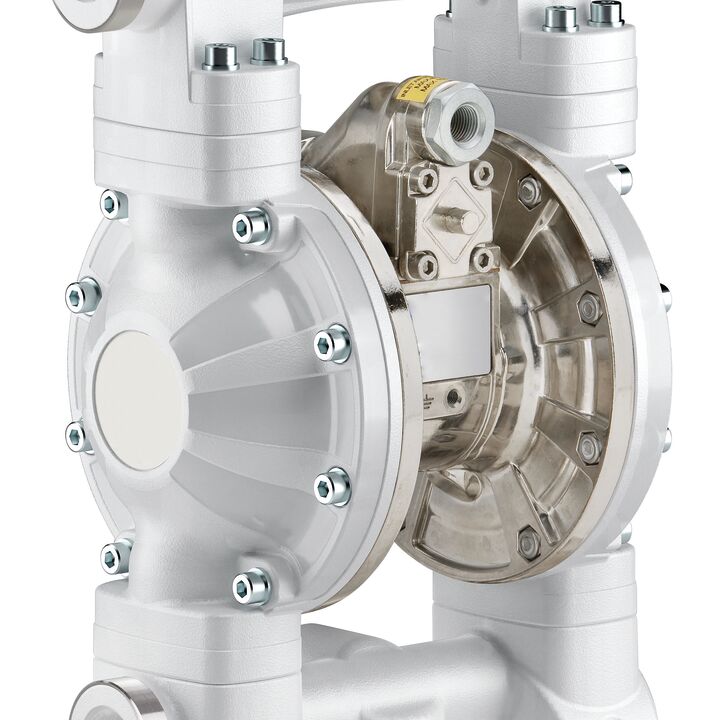

Pneumatic diaphragm pump 120-PPAB

Article no.: 7.100.110
Product illustration may differ in individual cases.
664,00 €
incl. VAT plus 11,78 € shipping
Delivery time 6-14 days
HS-Code: 84138100
Country of origin: IT
Shipping weight: 5.5 kg
Back to overview

Technical data

  • Engine Diaphragm pump
  • Delivery rate 60l/min
  • Material Polypropylene
  • Material Membran Hytrel
  • Max. Suction height (filled) 4,5m
  • Max. Suction height (filled) 7,5m
  • Max. Solid size 1,5mm
  • Max. Liquid temperature 65°C
  • Volume 75dB
  • Max. Air consumption 0,5m³/min
  • Working compressed air 2-6bar
  • Eingang Druckluft 3/8“ F
  • Ausgang Druckluft 1/2“ F
  • Liquid connection inlet 3/4" F 1" F
  • Outlet Fluid connection 1/2" F

Description

Housing polypropylene, motor aluminum, membrane Hytrel, inlet 3/4"/1"F, outlet 1/2"F, max. 8bar - 60ltr./min.
