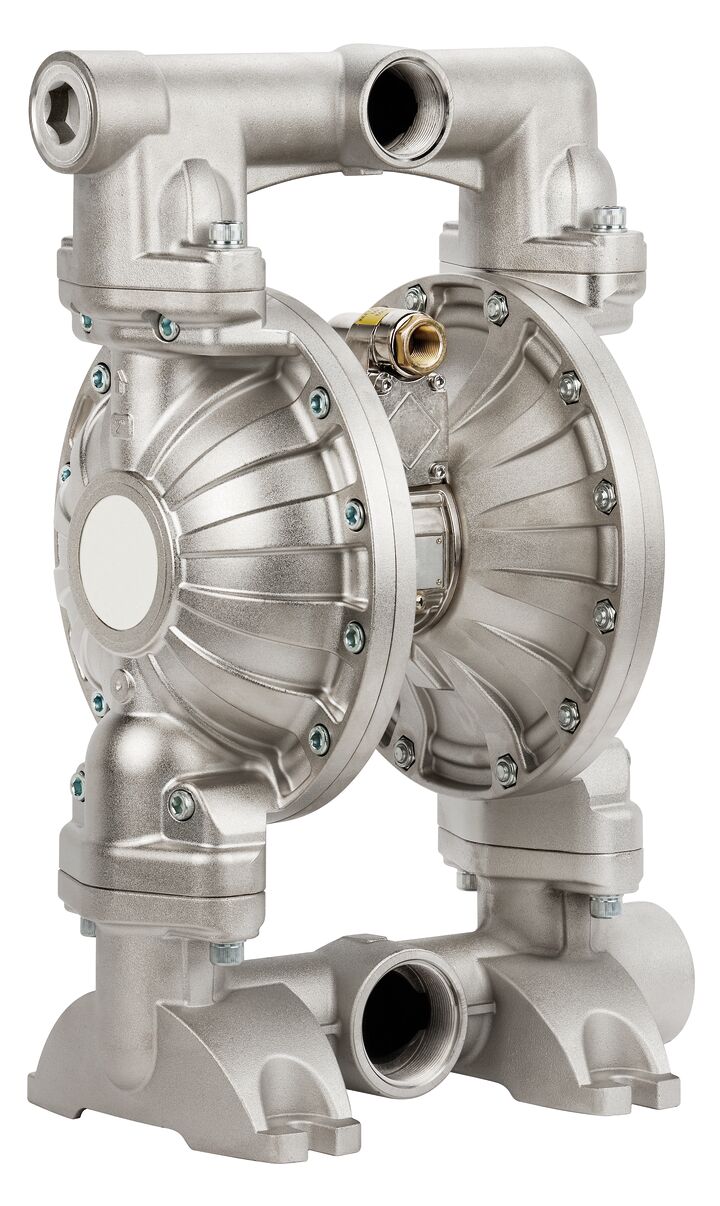

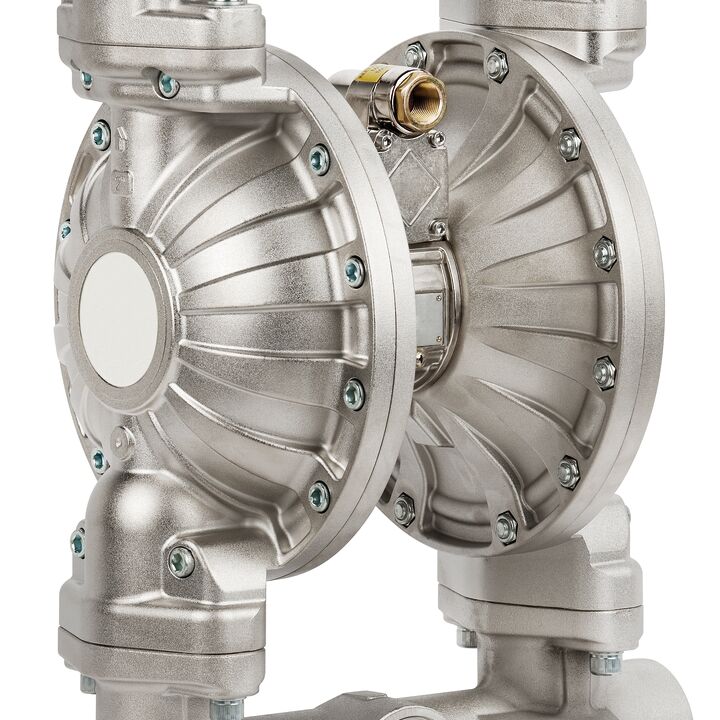

Our air-operated diaphragm pumps stand for uncompromising quality, reliable function and versatility - developed for demanding industrial applications.
Main features:
• maximum flow rate: max. 8bar - 610l/min.
• pump and motor housing: made of aluminium
• diaphragm material: NBR
Technical highlights:
1. ball seats - for an optimised liquid flow rate
2. optimised suction channels - with threaded connection or flange
3. versatile diaphragm materials - for different media
4. reliable valve technology in the air motor - for smooth operation even with pressure fluctuations and high temperatures
5. changeover valve in the air motor - prevents the piston from seizing at dead centre
6. venting device - allows the motor to be operated even without a water separator
7. parts of the pump motor block - are made of self-lubricating materials
8. flanges of the pump housing - are designed for use under all operating conditions
9. aluminium housing - are sandblasted and the surfaces are nickel-plated
Typical areas of application:
Chemical, pharmaceutical, food processing, water and waste water technology and mining
