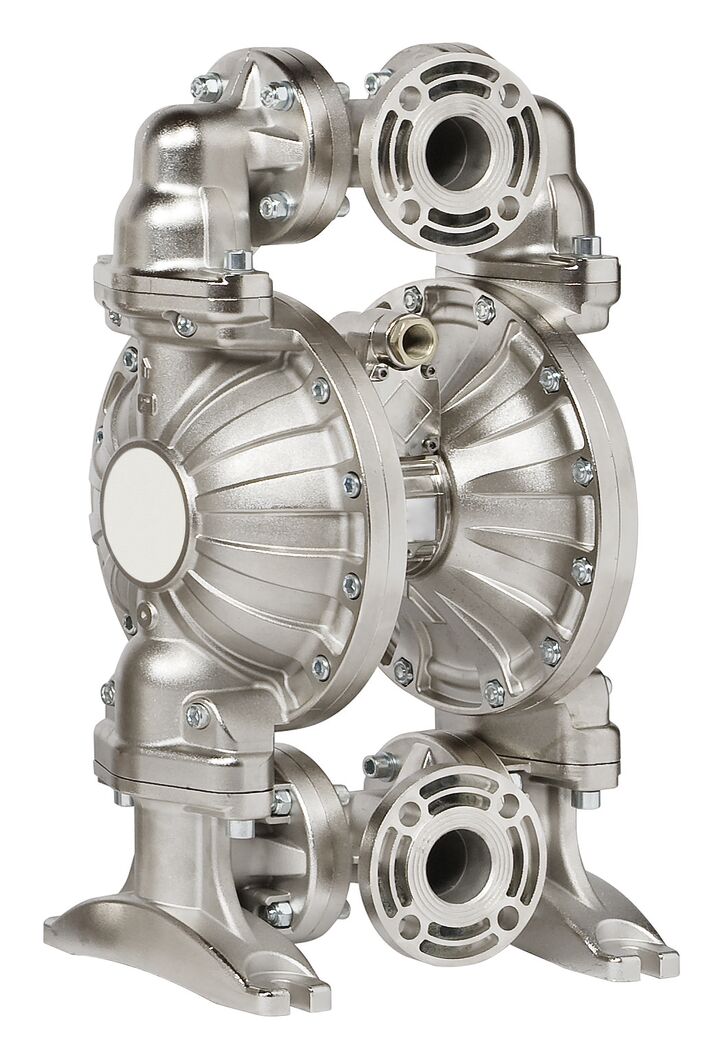

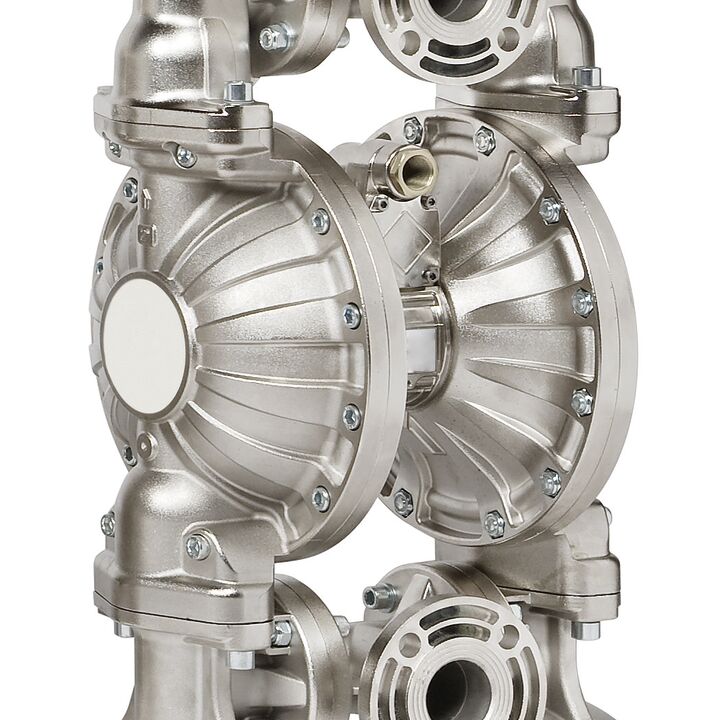

Pneumatic diaphragm pump 2000-AB

Article no.: 7.770.130
Product illustration may differ in individual cases.
2.950,00 €
incl. VAT plus 101,15 € shipping
Delivery time 6-14 days
HS-Code: 84138100
Country of origin: IT
Shipping weight: 50.0 kg
Back to overview

Technical data

  • Engine Diaphragm pump
  • Delivery rate 580l/min
  • Material Aluminium
  • Material Membran Santoprene
  • Max. Suction height (filled) 5m
  • Max. Suction height (filled) 7,5m
  • Max. Solid size 6,5mm
  • Max. Liquid temperature 100°C
  • Volume 82dB
  • Max. Air consumption 4m³/min
  • Working compressed air 2-6bar
  • Eingang Druckluft 3/4“ F
  • Ausgang Druckluft 1“ F
  • Liquid connection inlet ANSI 150 DIN PN 10 - JIS 10 K 2" (50mm)
  • Outlet Fluid connection ANSI 150 DIN PN 10 - JIS 10 K 2" (50mm)

Description

Housing + motor aluminum, membrane Santoprene, inlet ANSI 150-DIN PN10 -JIS 10K, outlet ANSI 150-DIN PN10 -JIS 10K, max. 8bar - 580ltr./min.
