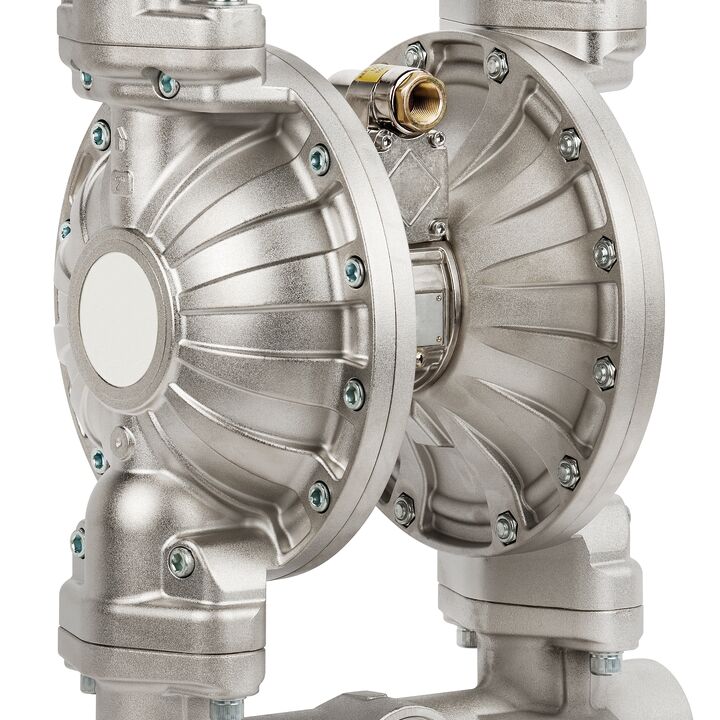

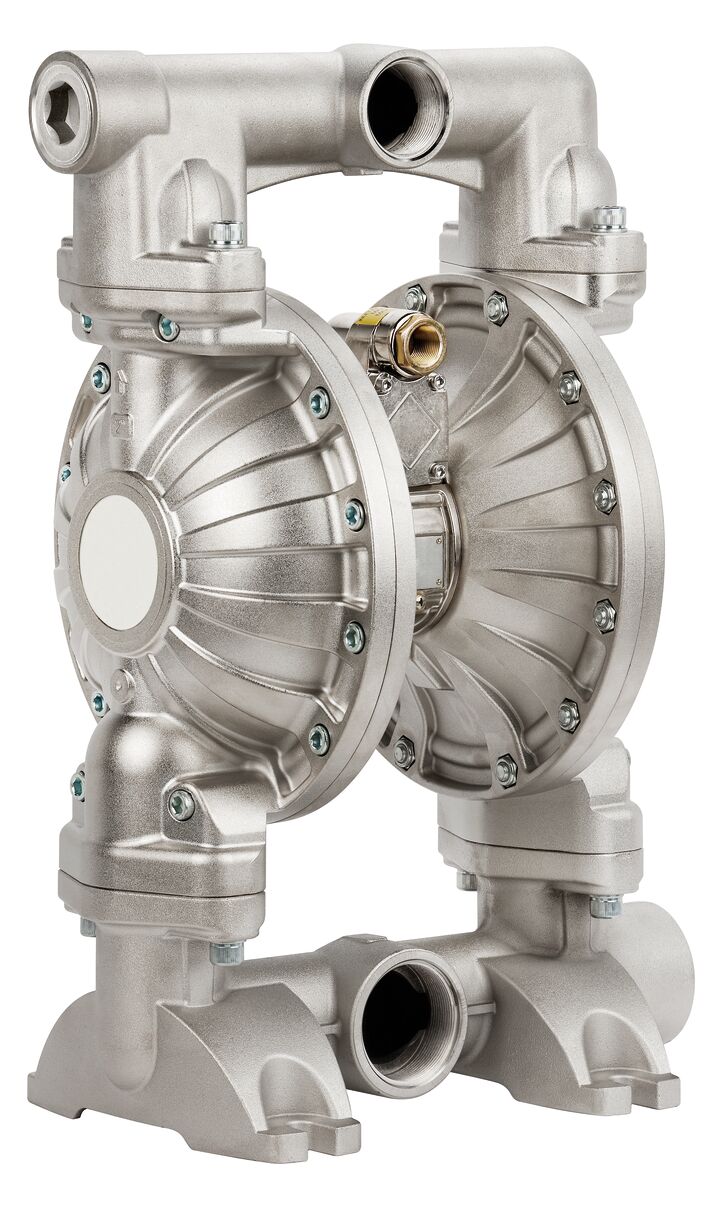

Pneumatic diaphragm pump 2000-AB-MULTI

Article no.: 7.760.100
Product illustration may differ in individual cases.
2.649,00 €
incl. VAT plus 101,15 € shipping
Delivery time 6-14 days
HS-Code: 84138100
Country of origin: IT
Shipping weight: 45.0 kg
Back to overview

Technical data

  • Engine Diaphragm pump
  • Delivery rate 610l/min
  • Material Aluminium
  • Material Membran EPDM
  • Max. Suction height (filled) 5m
  • Max. Suction height (filled) 7,5m
  • Max. Solid size 6,5mm
  • Max. Liquid temperature 100°C
  • Volume 82dB
  • Max. Air consumption 4m³/min
  • Working compressed air 2-6bar
  • Eingang Druckluft 3/4“ F
  • Ausgang Druckluft 1“ F
  • Liquid connection inlet 2 1/2" F
  • Outlet Fluid connection 2" F

Description

Housing + motor aluminum, membrane EPDM, inlet 2 1/2"F (2x), outlet 2"F (2x), max. 8bar - 610ltr./min.
