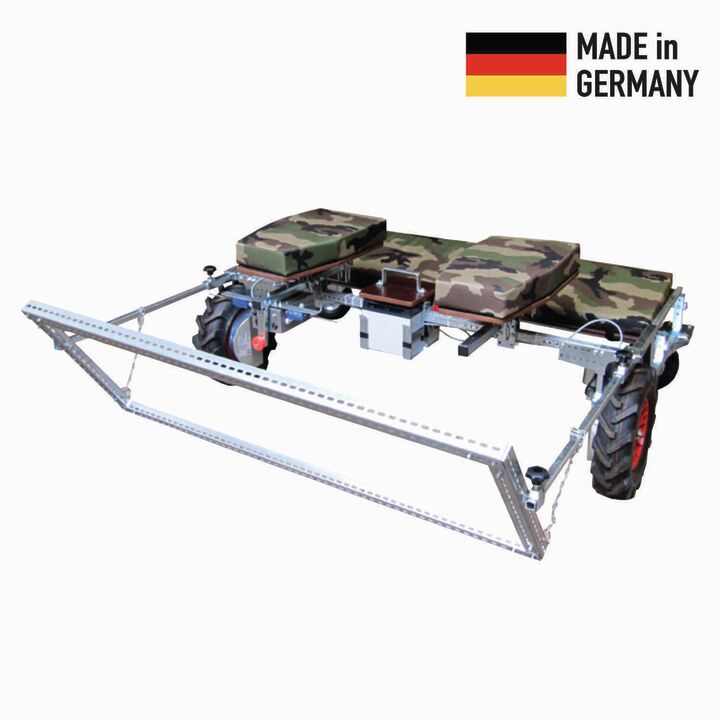

The ERGO is a self-propelled work platform that makes working on the ground considerably easier.
It is driven by a 24V DC geared motor with an energy-efficient permanent magnet system. Power is transmitted via a chain transmission.
Easy pushing, even without the motor switched on, is made possible by the disengageable wheels.
wheels.
Steering is via two elbow buttons. The speed is infinitely adjustable via the control panel and is always kept constant by proportional control, even on rough terrain and slight inclines of up to 10%.

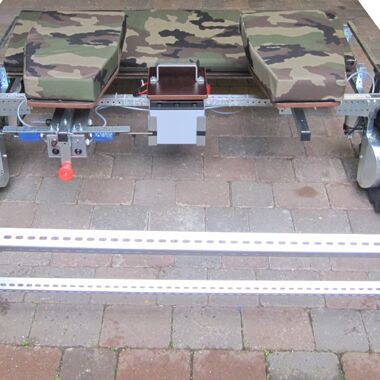

The bracket at the front is used to hold crates or plates and is height-adjustable.
The track width and working height are manufactured according to customer specifications. Necessary readjustment is possible at any time.
The lying platform can be individually adjusted to the user and thus guarantees an ergonomic working posture.
Technical data:
• Speed: 0-5m/min (0.3km/h)
• Unladen weight: 55-95 kg (depending on model)
• Max. Payload: 250kg
• Operating voltage: 24V-DC
• Battery: 23Ah exchangeable battery
• Tyres: Front: 4.00-8 PU, rear: 200x60 swivel castor
• Ground clearance: 35cm (optional 70cm)
• Lying height: 49-62 cm (optionally up to 100 cm)
