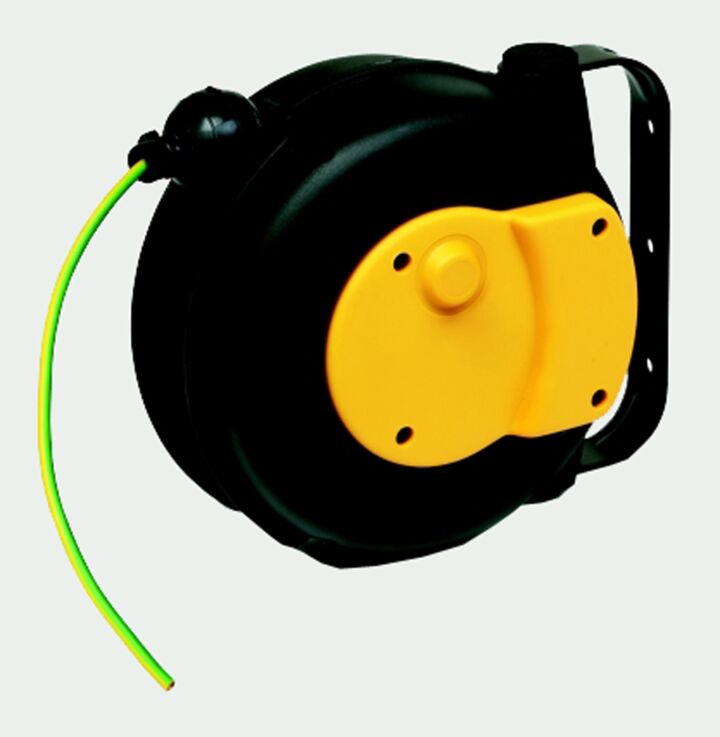

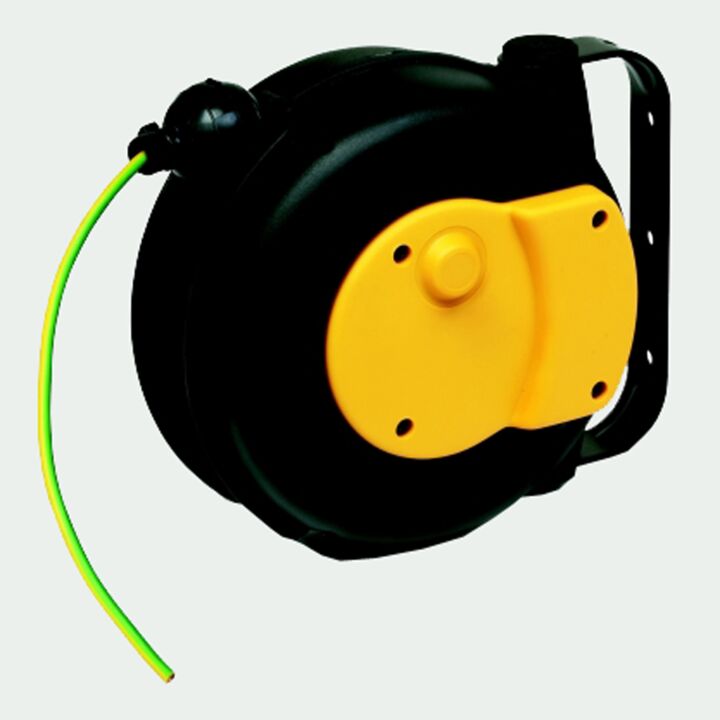

Cable reel mini electric

Article no.: 2.200.001
Product illustration may differ in individual cases.
161,00
incl. VAT plus 11,78  shipping
Delivery time 3-5 days
HS-Code: 84798997
EAN / GTIN: 4260554751988
Country of origin: IT
Shipping weight: 2.5 kg

Technical data

  • Casing Plastic
  • Drive system Spring return
  • Voltage grounding cable
  • Cross-section 6mm²
  • Number of conductors 1x
  • Slip ring 10A
  • Type of protection IP 42
  • Length/Capacity 7m

Description

The automatic cable reels with spring return and cable lock are specially designed for professional use. They are available in a wide range of cable variants and are perfect for applications in trade, craft, industry and agriculture.

Features:
• Spring return for even and effortless winding of the cable to avoid tripping hazards and increase safety in the workplace
• The cable lock can be activated with each revolution to fix the cable at the desired length (can be switched off)
• Versatile cable variants available to meet different requirements
• Pivoting wall bracket for 180° rotation for maximum flexibility in installation and use
• Impact-resistant, UV-resistant housing for a long service life and to protect the device from damage
• Protection class IP 42
• specially with earthing cable for applications for earthing vehicles, machines and systems

Application:
• Perfect for workshops, storage rooms and assembly areas where flexible cable organization is necessary
• Ideal for use on construction sites and in craft businesses where mobility and order are required
• Optimal for production halls, machine parks and production lines to ensure smooth and safe cable handling
• Suitable for use in stables and farms where robust solutions are required
