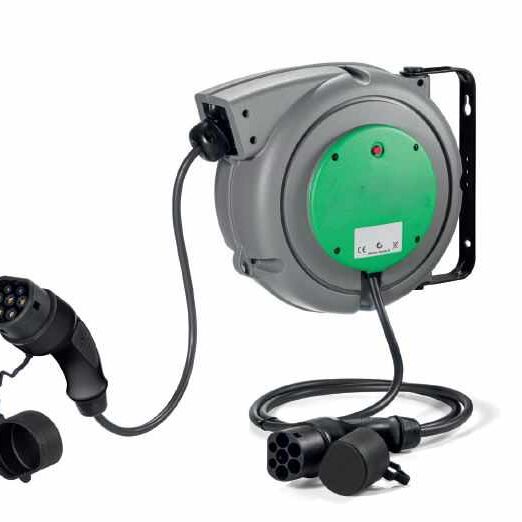

Cable reel X 5000

Article no.: 2.354.001
Product illustration may differ in individual cases.

• for car charging stations
• spring return & cable lock
• plastic housing, impact-resistant and UV-resistant"

1.188,00
incl. VAT plus 11,78  shipping
Delivery time 31-45 days
HS-Code: 84798997
Country of origin: IT

Technical data

  • Casing Plastic
  • Drive system Spring return
  • Voltage 230V
  • Cross-section 3x2,5mm²+1x0,5mm²
  • Slip ring 16A
  • Type of protection IP 42
  • Length/Capacity 4m

Description

The automatic cable reels with spring return and cable lock have been specially developed for professional use. They are available in a wide range of cable variants and are perfect for commercial, trade, industrial and agricultural applications.

Features:
• spring return for even and effortless cable rewinding to avoid tripping hazards and increase safety in the workplace
• the cable lock can be activated with each turn to fix the cable at the desired length (can be switched off)
• for greater organisation, cleanliness and safety when charging the car
• swivelling wall bracket for 180° rotation, for maximum flexibility during installation and use
• impact-resistant, UV-resistant housing for a long service life and to protect the device from damage

Features:
• with 4m cable 3x2.5mm² and 1x0.5mm²
• charging type: single-phase
• slip ring: 16A
• connections: Type 1 vehicle side and type 2 wallbox side
• protection class IP 42
• without wallbox
