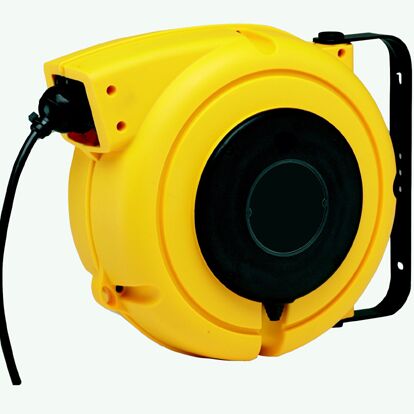

Cable reel X 4000 DATA

Article no.: 2.250.011
Product illustration may differ in individual cases.
959,00
incl. VAT plus 11,78  shipping
Delivery time on request
HS-Code: 84798997
Country of origin: IT
Shipping weight: 5.0 kg

Technical data

  • Casing Plastic
  • Drive system Spring return
  • Voltage 24V
  • Cross-section 0,5mm²
  • Number of conductors 12x
  • Slip ring 2A
  • Type of protection IP 42
  • Length/Capacity 10m

Description

Spring return, cable lock, wall bracket swivels 180°, can be mounted in any position.

Specially designed with slip ring and cable for the transmission of digital and video signals. The brushes of the slip ring have a low peripheral grinding speed at the contact point between the brushes and rings, a low concentricity deviation and are therefore subject to very little wear. The contact points are coated with a gold alloy, which reduces noise and prevents interference between circuits.
