Product illustration may differ in individual cases.

Hose reel HM 610

Article no.: 8.610.130
Product illustration may differ in individual cases.
463,00
incl. VAT plus 83,30  shipping
Delivery time 3-5 days
HS-Code: 73269050
Country of origin: IT
Shipping weight: 33.0 kg

Technical data

  • Medium Cold water, Compressed air, Diesel, Vacuum
  • Diameter 25mm (1")
  • Casing Painted steel
  • Drive system Manual
  • Length/Capacity ohne Schlauch
  • Pressure 20bar

Description

20 bar/ 90°C, hose max. 20m - 27mm OD/ 15m - 34mm OD, 1" F, fixed mounting bracket, adjustable return brake

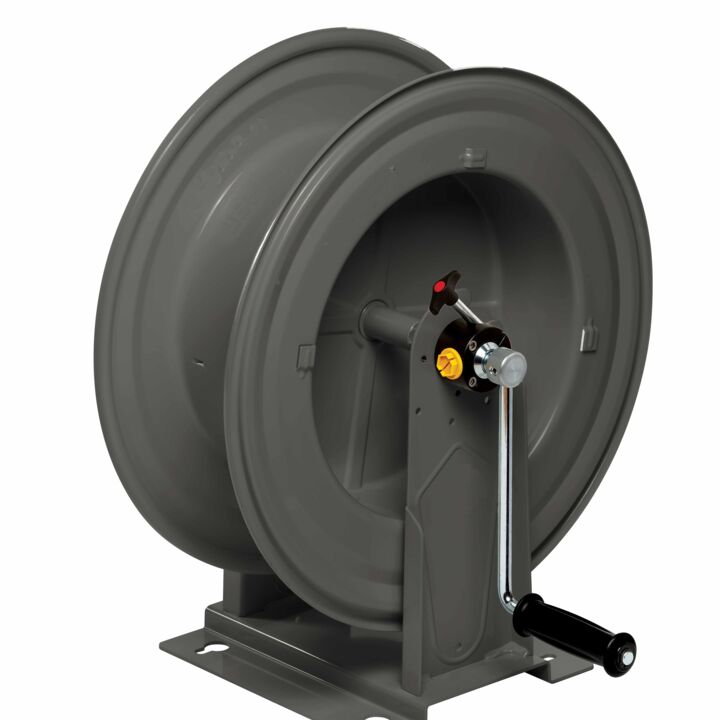

Illustration: New version in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.

Downloads

Alternative products
