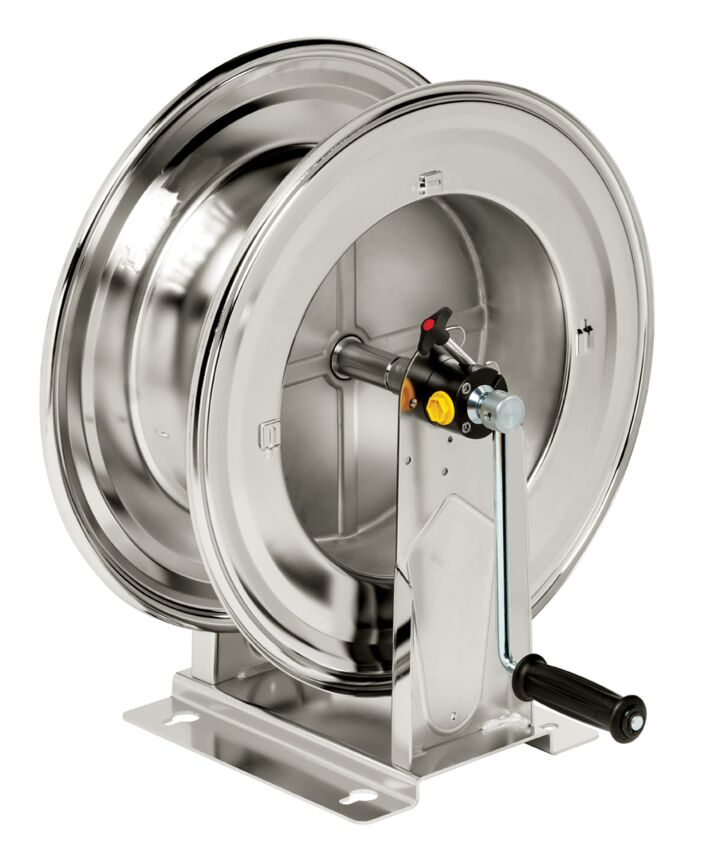

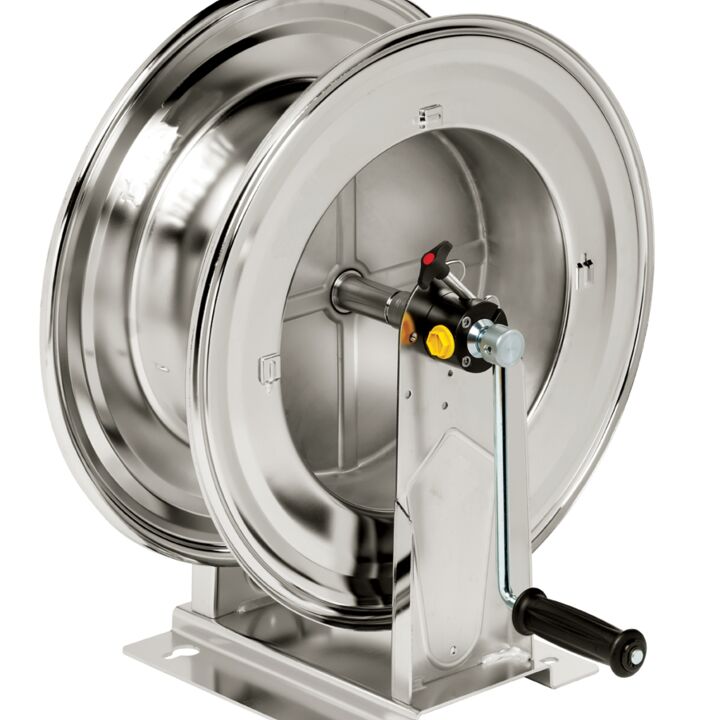

The HM manual hose reel is particularly suitable for use in workshops, construction sites and industrial applications.
Main features:
• safety crank system so that the hand crank does not rotate when the hose is pulled out
• robust reel with reinforced edges for greater stability
• paintedsteel housing
• adjustable return brake prevents the reel from rolling when the hose is pulled out
• sturdy mounting bracket for wall, floor or ceiling mounting
• TENAXID reel bearings: self-lubricating and corrosion-resistant
• hose capacity: max. 60m - 17mm OD
• swivel joint: galvanised steel, 600bar / 60°C
• inlet: 3/8"F
Optionally available: Locking pin for fixing the reel, prevents it from rolling up and is recommended for installation on vehicles or machines with strong vibrations.
