The HM manual hose reel is particularly suitable for use in workshops, construction sites and industrial applications.
Main features:
• safety crank system so that the hand crank does not rotate when the hose is pulled out
• robust reel with reinforced edges for greater stability
• paintedsteel housing
• adjustable return brake prevents the reel from rolling when the hose is pulled out
• sturdy mounting bracket for wall, floor or ceiling mounting
• TENAXID reel bearings: self-lubricating and corrosion-resistant
• hose capacity: max. 45m - 27mm OD / 30m - 34mm OD
• swivel joint: nickel-plated brass, 20bar / 90°C
• inlet: 1"F
Optionally available: Locking pin for fixing the reel, prevents it from rolling up and is recommended for installation on vehicles or machines with strong vibrations.

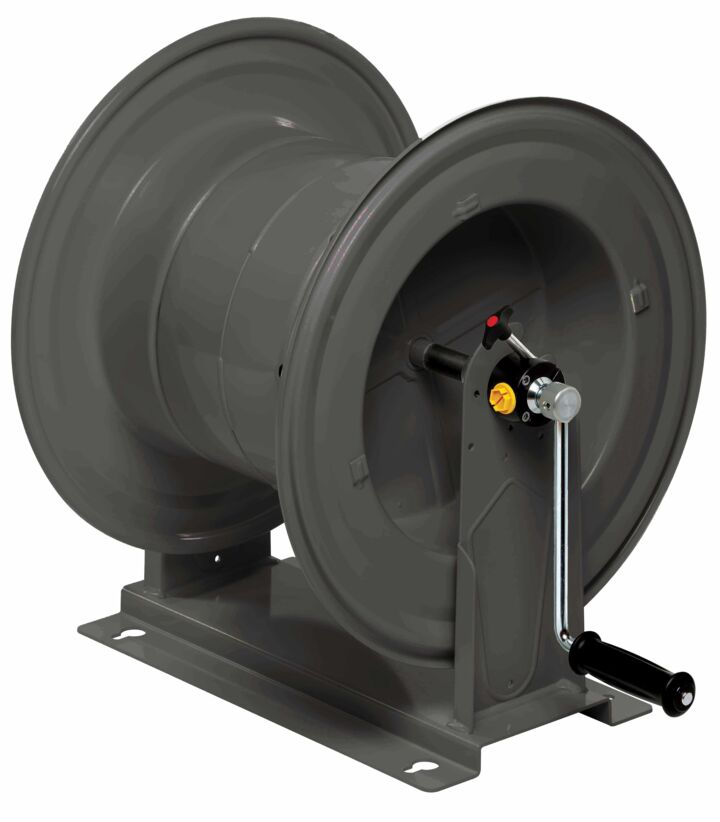

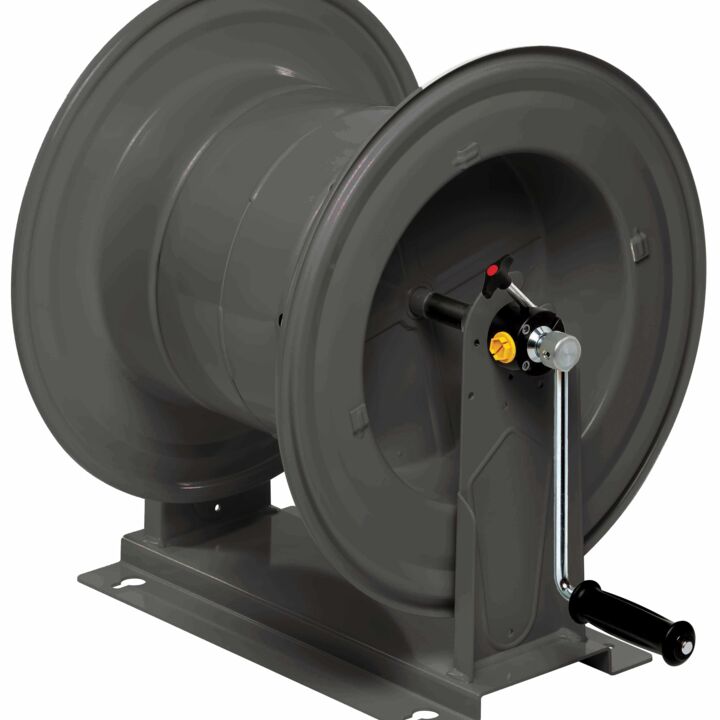

Illustration: New version in RAL 7016 (anthracite) - as part of the colour change, the old version in RAL 7035 (light grey) will still be delivered depending on stock.
