Hose reel HM 710

Article no.: 8.710.400
Product illustration may differ in individual cases.

758,00 €
incl. VAT plus 107,10 € shipping
Delivery time 3-5 days
Questions about the product?
HS-Code: 73269050
Country of origin: IT
Shipping weight: 50.0 kg
Back to overview

Technical data

  • Medium High pressure
  • Diameter 10mm (3/8")
  • Casing Painted steel
  • Drive system Manual
  • Length/Capacity ohne Schlauch
  • Pressure 400bar

Description

400 bar/ 130°C, hose max. 120m • 17mm OD, 3/8" F, fixed mounting bracket, adjustable return brake

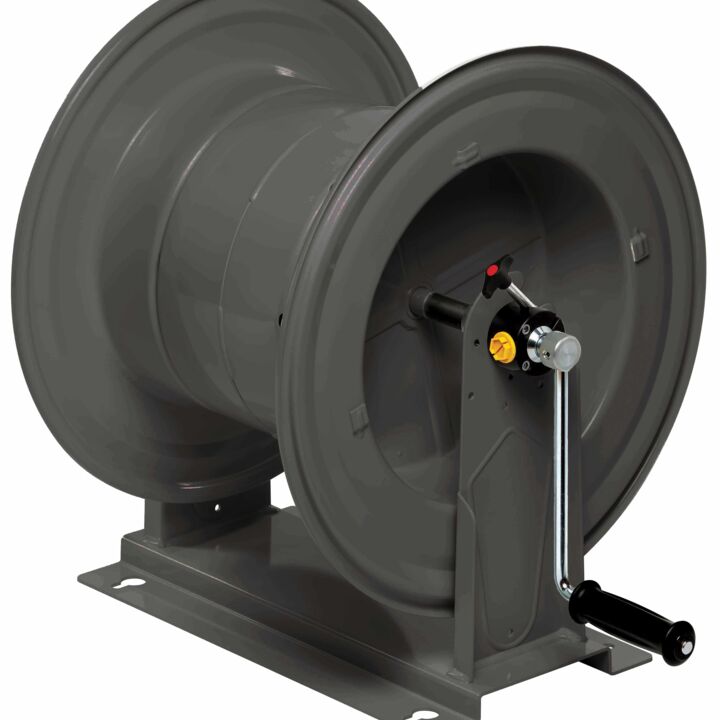

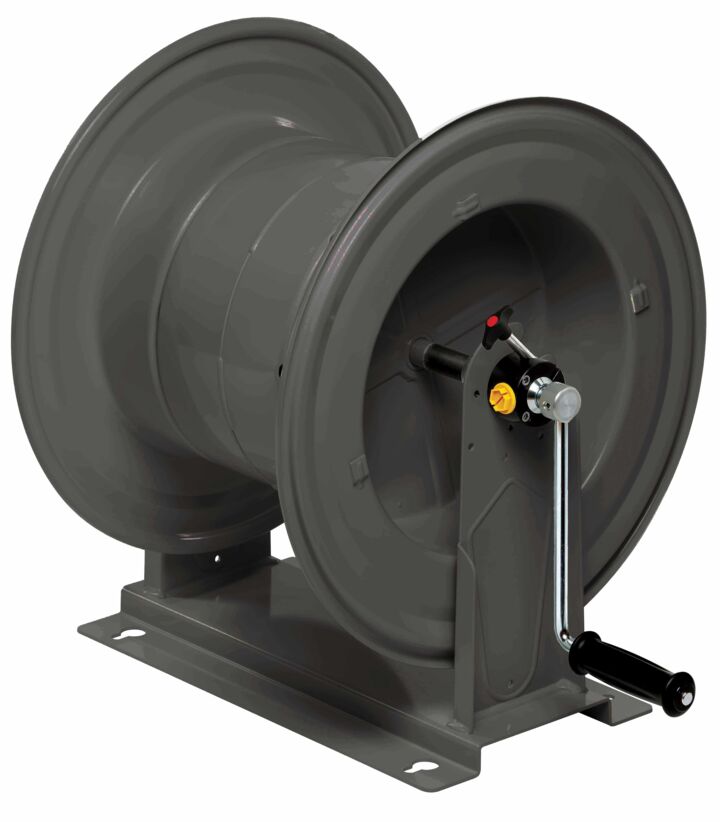

Illustration: New version in RAL 7016 (anthracite) • as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.

Matching accessories

Mounting plate

65,00 €

Downloads
