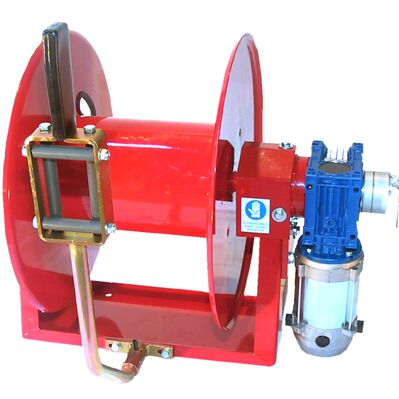

Hose reel MGE 240S

Article no.: 2.969.210
Product illustration may differ in individual cases.

• with electric motor 230V AC, 550W, 1.6A
• with freewheel
• with control box

5.094,00
incl. VAT plus 89,25  shipping
Delivery time 31-45 days
HS-Code: 84798997
Country of origin: IT

Technical data

  • Medium Cold water, Compressed air, Hot water, Pesticides, Oil
  • Diameter 13mm (1/2")
  • Casing Painted steel
  • Drive system Electric motor 230/ 400V
  • Length/Capacity ohne Schlauch
  • Pressure 250bar

Description

With its robust design and electric motor, the MGE hose reel offers an efficient way to store hoses safely and neatly - both in gardening and landscaping, industry and craft businesses.

• the electric motor 230V AC, 550W, 1.6A - can be manually disengaged for motor freewheeling
• speed 30 rpm
• control box with emergency stop switch, on/off and forward/reverse function, infinitely variable speed regulation
• robust housing made of painted steel offers protection against external influences and guarantees a long service life
• ball-bearing axle for smooth winding
• brass swivel joint made of galvanised steel max. 250 bar/90 °C for a long service life
• sturdy mounting bracket ensures secure fastening in the desired position
• supplied without hose and roller window - available separately as an accessory
• hose capacity: 80m - 13mm ID / 110m - 10mm ID

Optional accessories:

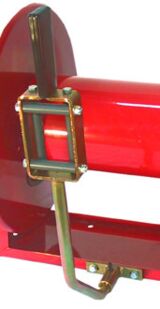

• roller window with handle: Helps to guide the hose optimally. The handle ensures easy handling
