Product illustration may differ in individual cases.

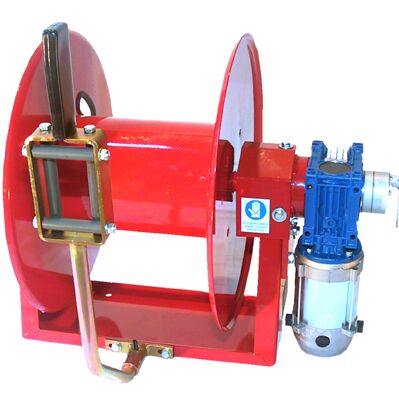

Hose reel MGE 312

Article no.: 2.960.020
Product illustration may differ in individual cases.

• with electric motor 12V DC, 43A
• with manually engageable clutch
• Robust painted steel housing

2.749,00
incl. VAT plus 89,25  shipping
Delivery time 6-14 days
HS-Code: 84798997
Country of origin: IT
Shipping weight: 42.0 kg

Technical data

  • Medium Cold water, Compressed air, Hot water, Pesticides, Oil
  • Diameter 13mm (1/2")
  • Casing Painted steel
  • Drive system Electric motor 12V
  • Length/Capacity ohne Schlauch
  • Pressure 250bar

Description

With its robust design and electric motor, the MGE hose reel offers an efficient way to store hoses safely and neatly - both in gardening and landscaping, industry and craft businesses.

• The electric motor 12V DC, 43A, manually disengageable for motor freewheeling, allows the hose to be pulled out without motor resistance, even with long hose lengths
• Speed 30 rpm
• Robust housing made of painted steel offers protection against external influences and guarantees a long service life.
• Ball-bearing axle for smooth winding.
• Brass swivel joint made of galvanised steel max. 250 bar/90 °C for a long service life
• Sturdy mounting bracket ensures secure attachment in the desired position
• Supplied without hose, control box and roller window - available separately as accessories
• Hose capacity: 110m - 13mm ID / 160m - 10mm ID

Optional accessories:

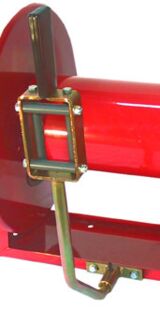

• Roller window with handle: Helps to guide the hose optimally. The handle ensures easy handling
• Control box with simple retraction function
