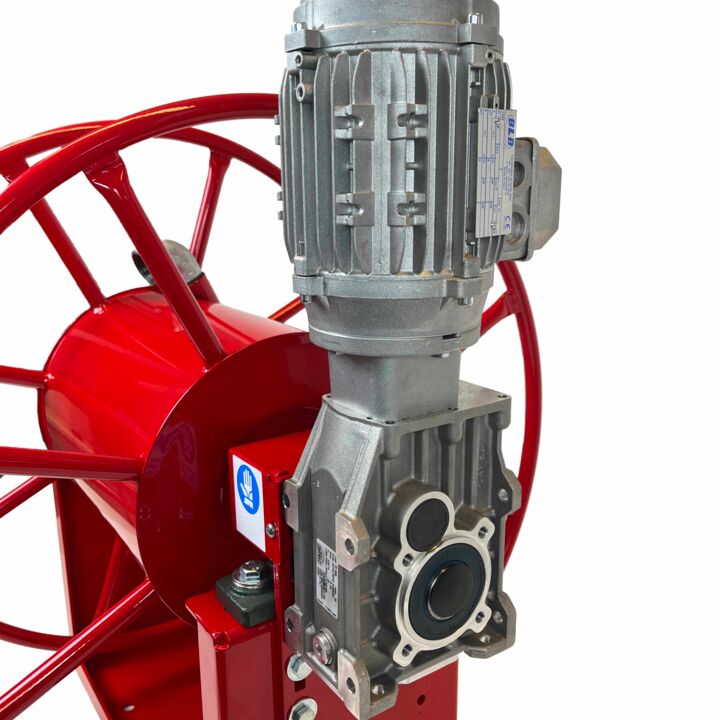

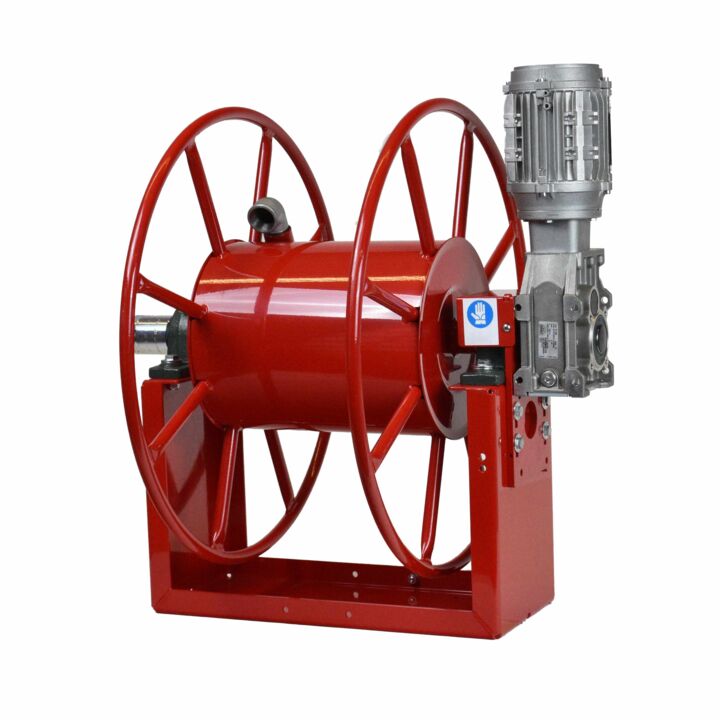

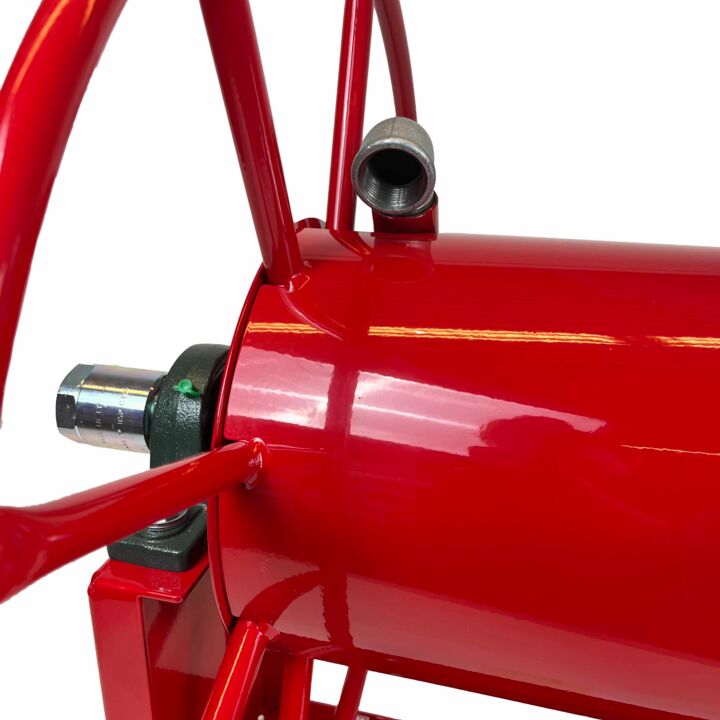

Hose reel MGLE 240

Article no.: 2.780.010
Product illustration may differ in individual cases.

3.627,00
incl. VAT plus 130,90  shipping
Delivery time 3-5 days
HS-Code: 84248210
Country of origin: IT
Shipping weight: 44.0 kg

Technical data

  • Medium Cold water, Compressed air, Vacuum, Oil, Hot water
  • Diameter 25mm (1")
  • Casing Painted steel
  • Drive system Electric motor 230/ 400V
  • Length/Capacity ohne Schlauch
  • Pressure 250bar

Description

Motor 400V AC • 550W • 1,6A
Speed 27rpm
manual pull-out with slight motor resistance
hose capacity max. 50m • 25mm ID 100m • 15mm ID 130m • 13mm ID
swivel joint galvanized steel max. 250bar/90°C
ball bearing axle
fixed mounting bracket
