Product illustration may differ in individual cases.

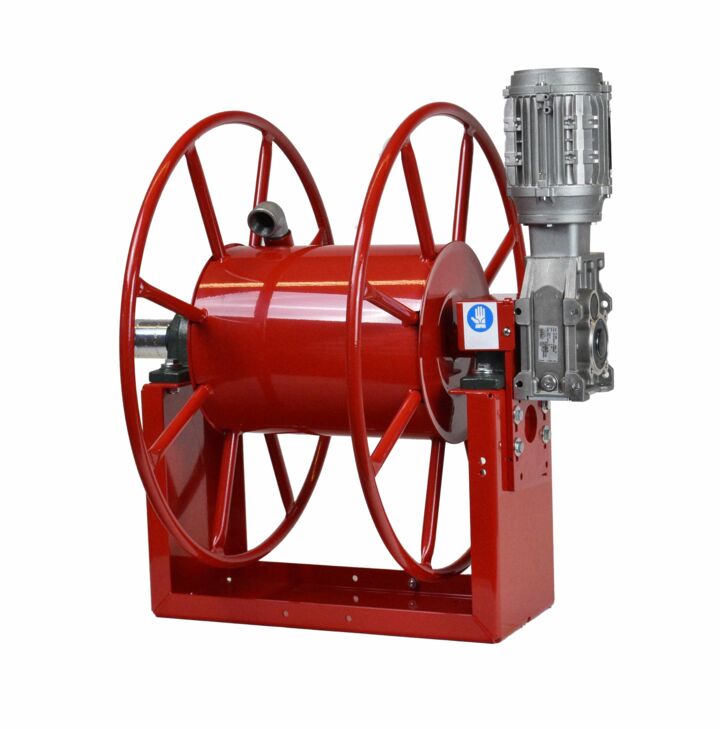

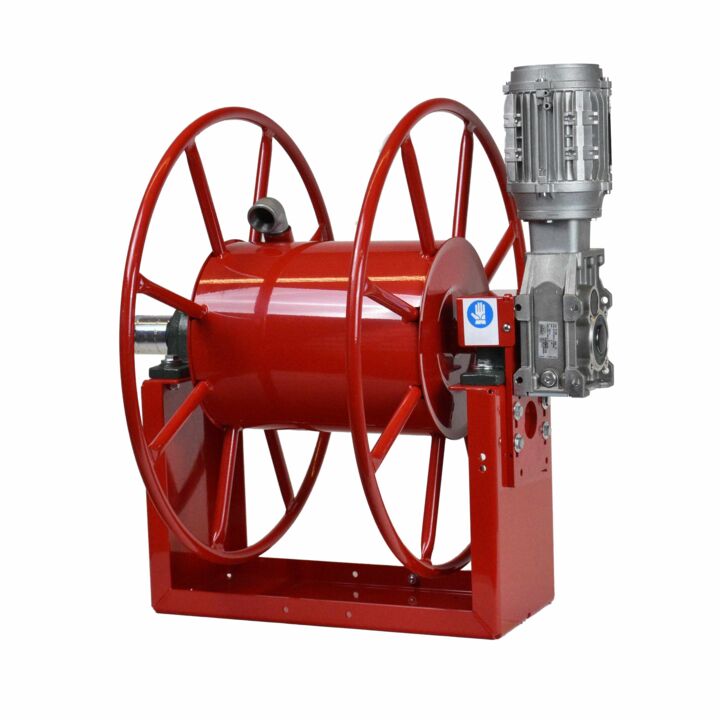

Hose reel MGLE 340F

Article no.: 2.780.120
Product illustration may differ in individual cases.

• 230V electric motor with automatic freewheel
• with control box
• painted steel housing

6.932,00
incl. VAT plus 130,90  shipping
Shipping in 31-45 days
HS-Code: 84248210
Country of origin: IT
Shipping weight: 50.4 kg

Technical data

  • Medium Cold water, Compressed air, Vacuum, Oil, Hot water
  • Diameter 25mm (1")
  • Casing Painted steel
  • Drive system Electric motor 24V
  • Length/Capacity ohne Schlauch
  • Pressure 250bar

Description

The hose reel model MGLE F is ideal for professional applications in gardening and landscaping, industry and trade and when hoses with an inner diameter of 25 - 50 mm need to be stowed safely and neatly.

• electric motor 230V AC, 550W, 27 rpm with automatic freewheel
• control box with emergency stop switch
• Radio remote control: function on/off and forwards/backwards
• robust painted steel housing for excellent protection against external influences and a long service life - ideal for professional use in tough conditions.

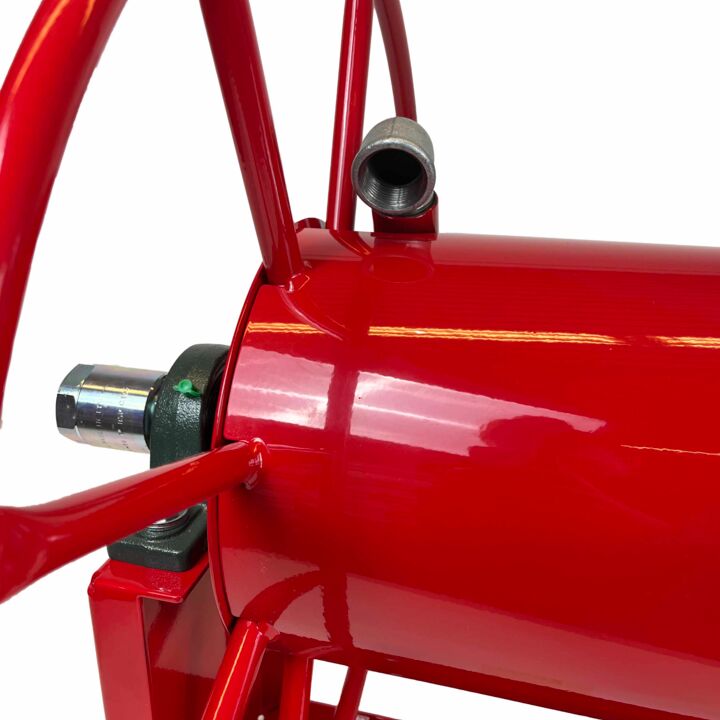

• ball bearing axle for smooth winding.
• high quality brass swivel joint max. 250 bar / 90°C
• sturdy mounting bracket for securely fastening the hose reel in the desired position.
• practical version without hose: hose available as an accessory
• hose capacity: 270m - 13mm ID
