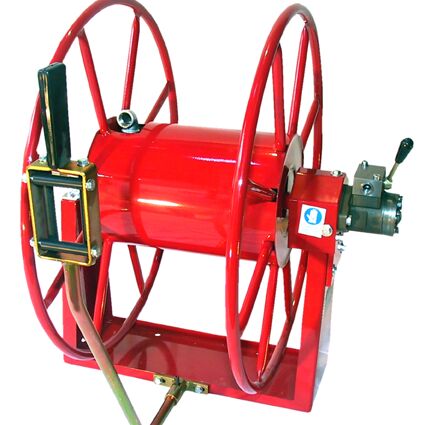

With its robust design, the MGLO hydraulic hose reel offers an efficient way to store hoses safely and neatly - both in industry and in craft businesses.
Key features:
• The hydraulic motor with freewheel enables hoses to be pulled out without motor resistance, even with long hose lengths.
• Oil consumption approx. 9 l/min, return speed adjustable via flow regulator on the carrier vehicle - flow regulator optionally available.
• Robust housing made of painted steel offers protection against external influences and guarantees a long service life.
• Ball bearing axle for smooth winding.
• Brass swivel joint made of galvanised steel max. 250 bar/90 °C for a long service life
• Sturdy mounting bracket ensures secure fastening in the desired position.
• Supplied without hose - suitable hose available as an accessory

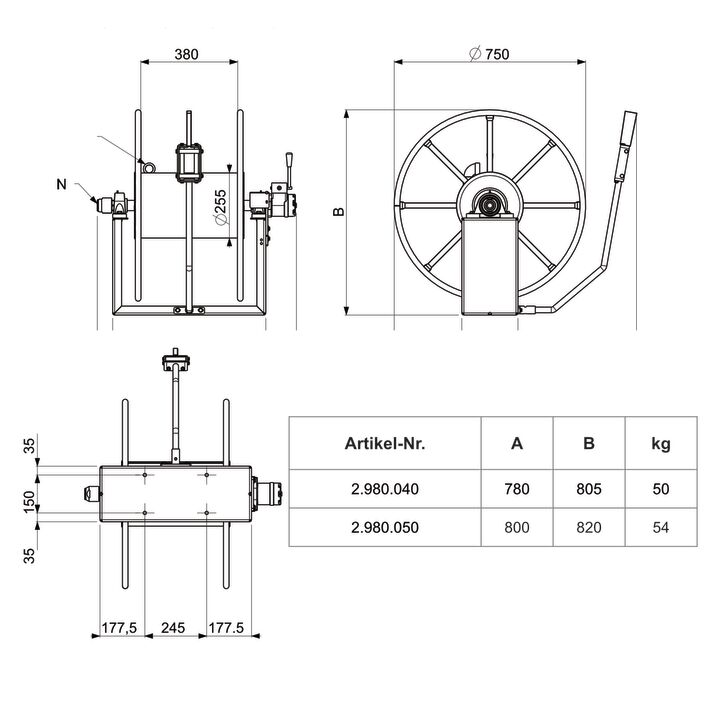

• Hose capacity: 100m - 25mm ID / 200m - 15mm ID / 270m -13mm ID
Optional accessories:

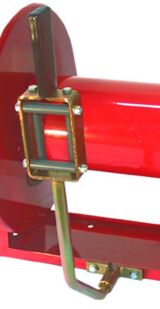

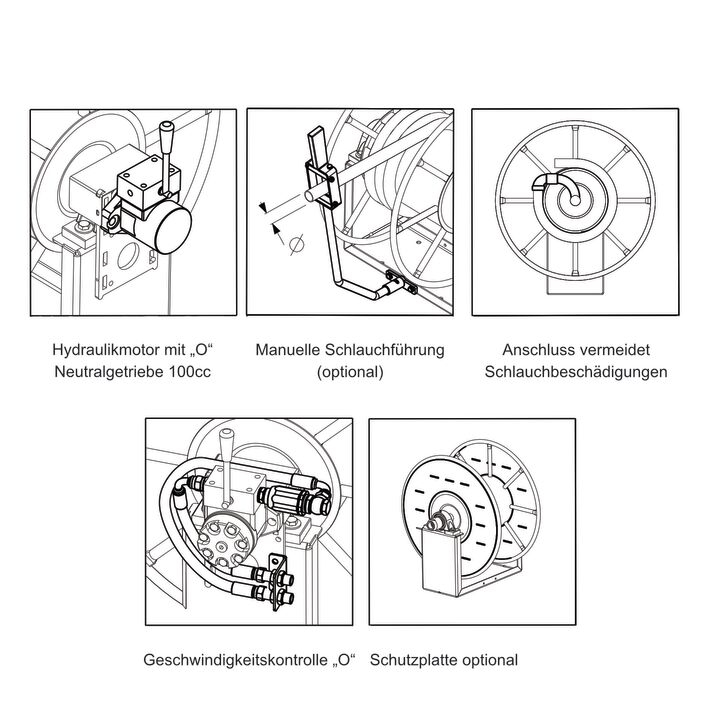

• Roller window with handle: Helps to guide the hose optimally. The handle ensures easy handling.
• Automatic hose guide for clean and tidy reeling of the hose - so the 100% capacity of the reel can be utilised
• Flow regulator for oil motor: is used to precisely control the return speed of the hose - particularly important if the pump (e.g. on the tractor) does not offer its own regulation.
