With its robust design, the MGO hydraulic hose reel offers an efficient way to store hoses safely and neatly • both in gardening and landscaping, industry and in craft businesses.
• the hydraulic motor with freewheel allows hoses to be pulled out without motor resistance, even with long hose lengths.
• the return speed can be adjusted via the oil volume - oil requirement approx. 9 l/min
• robust housing made of painted steel offers protection against external influences and guarantees a long service life.
• ball bearing axle for smooth winding.
• brass swivel joint made of galvanised steel max. 250 bar/90 °C for a long service life
• sturdy mounting bracket ensures secure fastening in the desired position.
• supplied without hose, roller window and flow regulator - available separately as accessories
• hose capacity: 110m - 13mm ID / 160m - 10mm ID
Optional accessories:

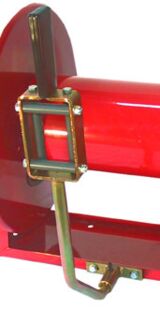

• roller window with handle: Helps to guide the hose optimally. The handle ensures easy handling.
• flow regulator for oil motor: is used to precisely control the return speed of the hose - particularly important if the pump (e.g. on the tractor) does not offer its own regulation.
regulation.
