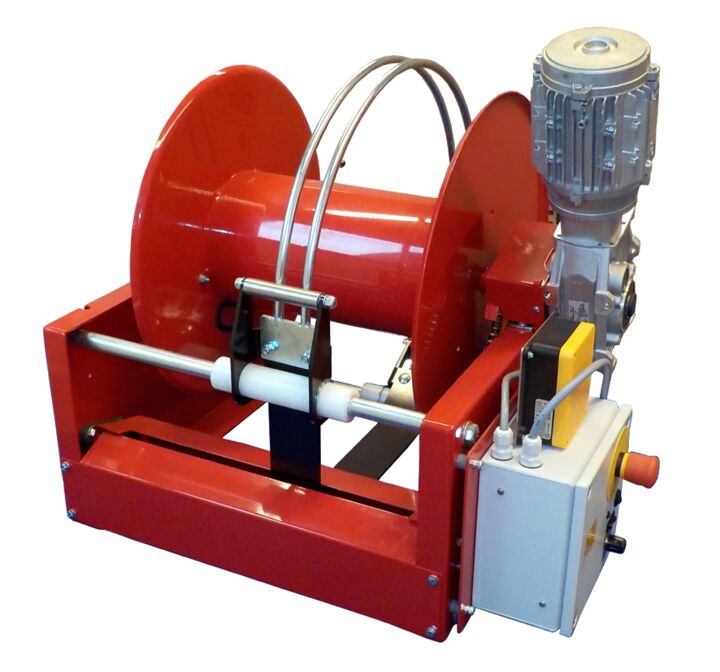

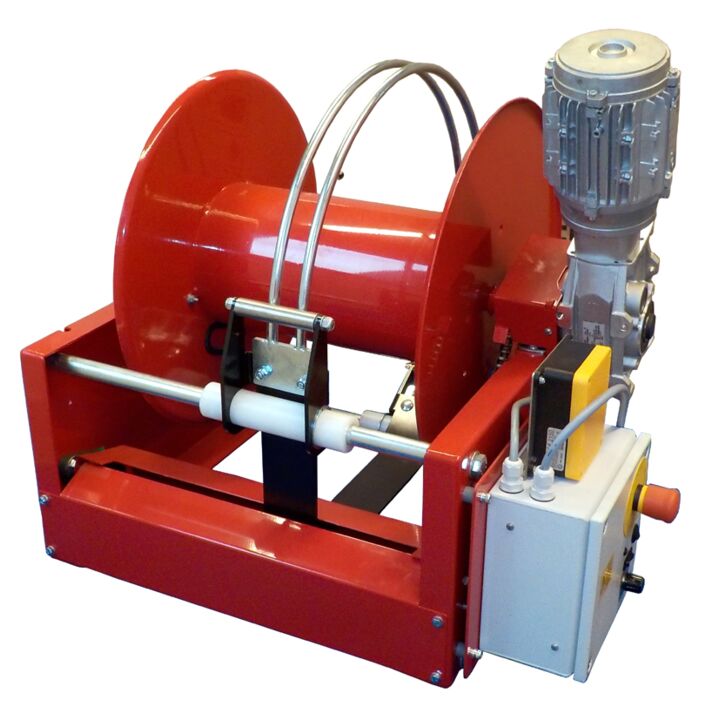

Hose reel MGTE 340

Article no.: 2.968.023
Product illustration may differ in individual cases.

• with 400V AC electric motor
• with manually switchable coupling
• with automatic hose guide

5.741,00
incl. VAT plus 89,25  shipping
Delivery time 31-45 days
HS-Code: 84798997
Country of origin: IT
Shipping weight: 53.0 kg

Technical data

  • Medium Cold water, Compressed air, Hot water, Pesticides, Oil
  • Diameter 13mm (1/2")
  • Casing Painted steel
  • Drive system Electric motor 230/ 400V
  • Length/Capacity ohne Schlauch
  • Pressure 250bar

Description

With its robust design and electric motor, the MGTE hose reel offers an efficient way to store hoses safely and neatly - both in gardening and landscaping, industry and craft businesses.

• the electric motor 400V AC, 750W, 1,6A, manually disengageable for motor freewheeling, enables hoses to be pulled out without motor resistance, even with long hose lengths
• speed 27 rpm
• robust painted steel housing offers protection against external influences and guarantees a long service life
• with automatic hose guide for neat and tidy hose winding
• ball-bearing axle for smooth winding
• brass swivel joint made of galvanised steel max. 250 bar/90 °C for a long service life
• sturdy mounting bracket ensures secure fastening in the desired position
• supplied without hose, control box and rechargeable battery - available separately as an accessory
• hose capacity: 110m - 13mm ID / 160m - 10mm ID

Optional accessories:
• control box with simple retraction function
• exchangeable battery 24V, mounted on hose reel with charger 24V, 5A, round plug
