Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories allow them to be adapted to all work areas and applications. With a robust and precise design, they offer a durable, reliable solution for a wide range of requirements.
Further features:
Automatic spring return with tension spring ‘Made in Germany",
Spring built into watertight housing,
Hose lock to secure the hose with every turn,
Fixed mounting bracket incl. drilling template for easy installation,
Hose stopper as end stop with inserts for different hose diameters,
High-quality swivel joint angled at 90° (see diameter for size),
Nickel-plated brass swivel joint, 1" F BSP, Viton seal, max. 90°C (note max. hose temperature),
Roller window adjustable in 3 positions,
Dimensions listed in the data sheet

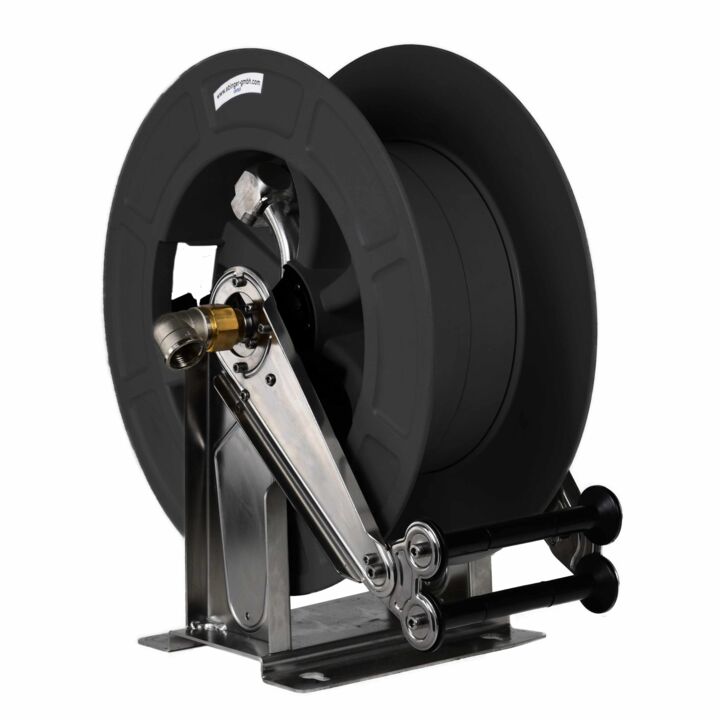

Illustration: New version in RAL 7016 (anthracite) - as part of the colour changeover
the old version in RAL 7035 (light grey) will still be delivered, depending on stock.
