Hose reel OSM 310

Article no.: 1.310.100
Product illustration may differ in individual cases.
342,00
incl. VAT plus 11,78  shipping
Delivery time 3-5 days
HS-Code: 73269050
Country of origin: IT
Shipping weight: 12.0 kg

Technical data

  • Medium Cold water, Compressed air, Hot water, Vacuum
  • Diameter 13mm (1/2")
  • Casing Painted steel
  • Drive system Spring return
  • Length/Capacity ohne Schlauch
  • Pressure 20bar

Description

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.

Further features:
Automatic spring return with tension spring "Made in Germany",
hose lock to fix the hose in place with each rotation,
swivelling wall bracket with 110° swivel range incl. drilling template for easy installation,
hose stopper as an end stop with inserts for different hose diameters,
high-quality swivel joint angled 90° (see diameter for size),
nickel-plated brass swivel joint, ½" F BSP, viton seal, max. 90°C (note max. hose temperature),
roller window adjustable in 3 positions,
dimensions listed in the data sheet

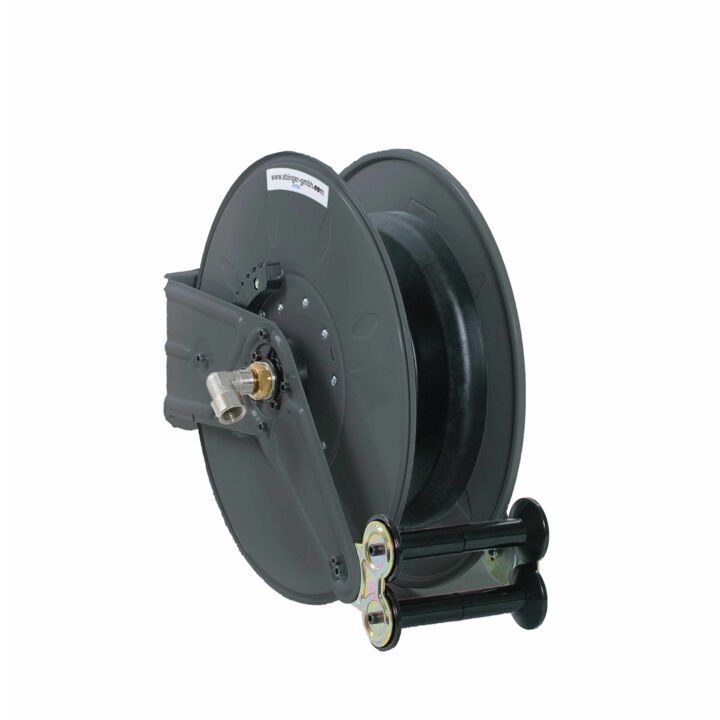

Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.
