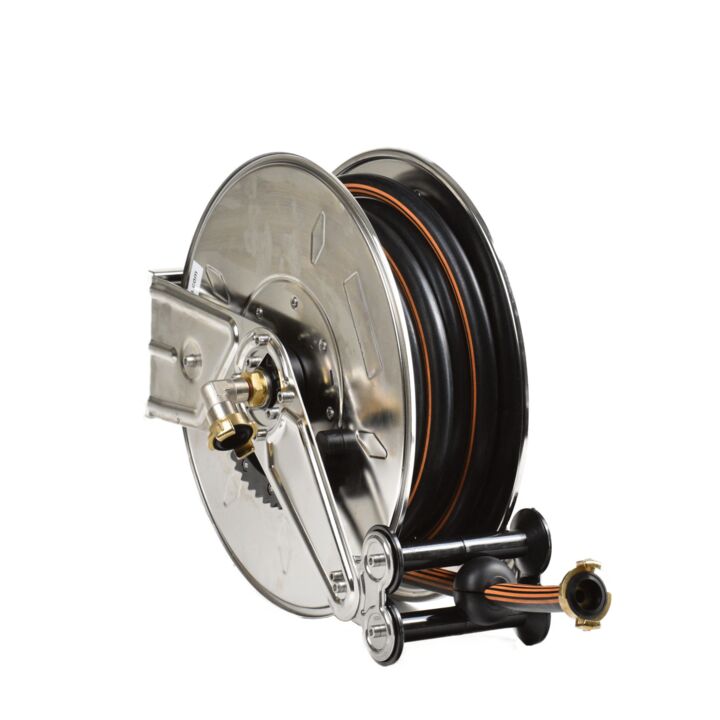

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Additional features:
• automatic spring return with tension spring "Made in Germany"
• hose lock to fix the hose in place with each rotation
• swivelling wall bracket with 110° swivel range incl. drilling template for easy installation,
• hose stopper as an end stop with inserts for different hose diameters
• high-quality swivel joint angled 90° (see diameter for size)
• swivel joint galvanized steel, ½" F BSP, viton seal, max. 90°C (note max. temperature of hose)
• roller window adjustable in 3 positions
• dimensions listed in the data sheet
