Product illustration may differ in individual cases.

Hose reel OSM 310

Article no.: 1.314.402
Product illustration may differ in individual cases.
934,00
incl. VAT plus 11,78  shipping
Delivery time 6-14 days
HS-Code: 73269050
Country of origin: IT
Shipping weight: 12.1 kg

Technical data

  • Medium High pressure
  • Diameter 8mm (5/16")
  • Casing Stainless steel
  • Drive system Spring return
  • Length/Capacity 15m
  • Pressure 400bar

Description

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.

Further features:
Automatic spring return with tension spring "Made in Germany",
hose lock to fix the hose with every rotation,
swivelling wall bracket with 110° swivel range incl. drilling template for easy installation,
hose stopper as an end stop with inserts for different hose diameters,
high-quality swivel joint 90° angled (size see diameter),
swivel joint stainless steel 1.4401, 3/8" F BSP, teflon seal, max. 130°C (note max. hose temperature),
roller window adjustable in 3 positions,

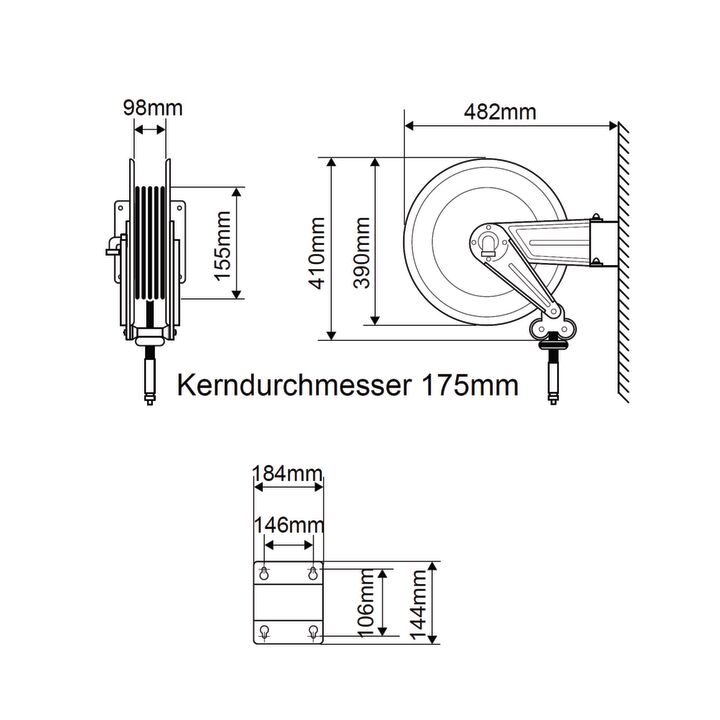

dimensions listed in the data sheet
