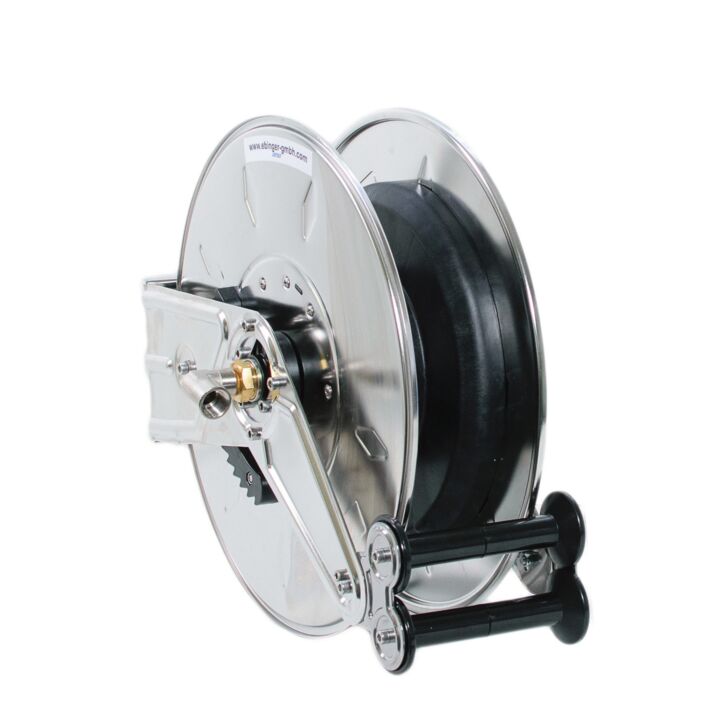

Hose reel OSM 310

Article no.: 1.314.500
Product illustration may differ in individual cases.
568,00
incl. VAT plus 11,78  shipping
Delivery time 3-5 days
HS-Code: 73269050
Country of origin: IT
Shipping weight: 12.0 kg

Technical data

  • Medium Grease
  • Diameter 6mm (1/4")
  • Casing Stainless steel
  • Drive system Spring return
  • Length/Capacity ohne Schlauch
  • Pressure 400bar

Description

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.

Further features:
Automatic spring return with tension spring "Made in Germany",
hose lock to fix the hose with every rotation,
swivelling wall bracket with 110° swivel range incl. drilling template for easy installation,
hose stopper as an end stop with inserts for different hose diameters,
high-quality swivel joint 90° angled (size see diameter),
swivel joint galvanized steel, 3/8" F BSP, polyeurethan seal, max. 80°C (note max. hose temperature),
roller window adjustable in 3 positions,
dimensions listed in the data sheet
