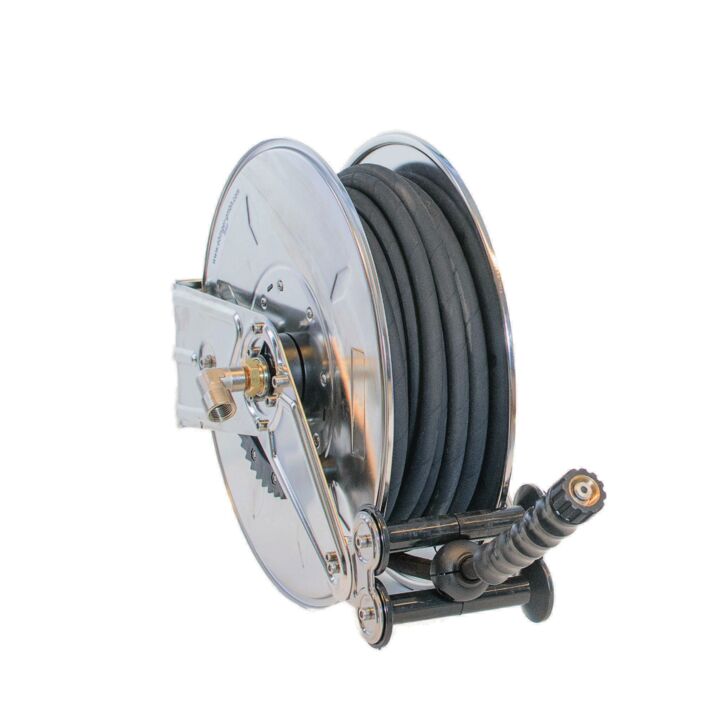

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Further features:
Automatic spring return with tension spring "Made in Germany",
hose lock to fix the hose with every rotation,
swivelling wall bracket with 110° swivel range incl. drilling template for easy installation,
hose stopper as an end stop with inserts for different hose diameters,

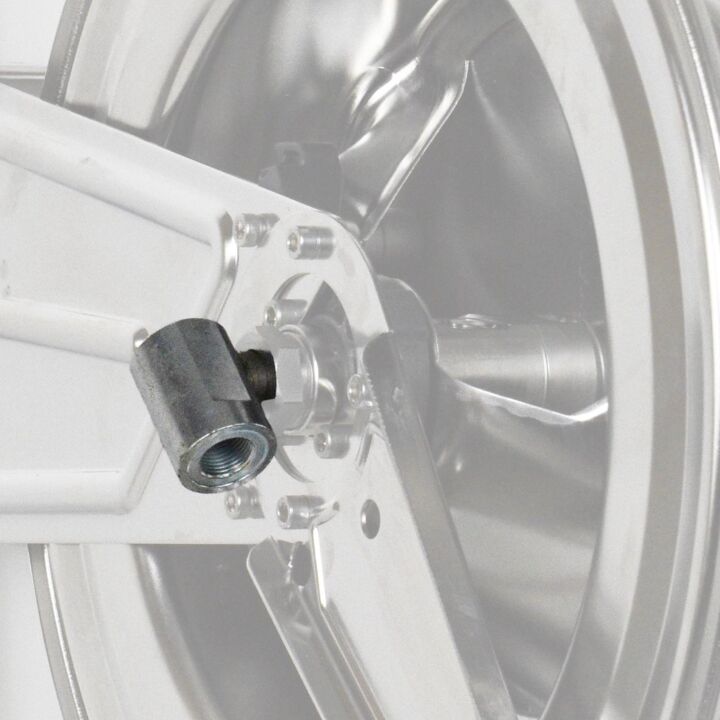

high-quality swivel joint 90° angled (size see diameter),
swivel joint galvanized steel 1.4401, 3/8" F BSP, polyeurethan seal, max. 80°C (note max. hose temperature),
roller window adjustable in 3 positions,

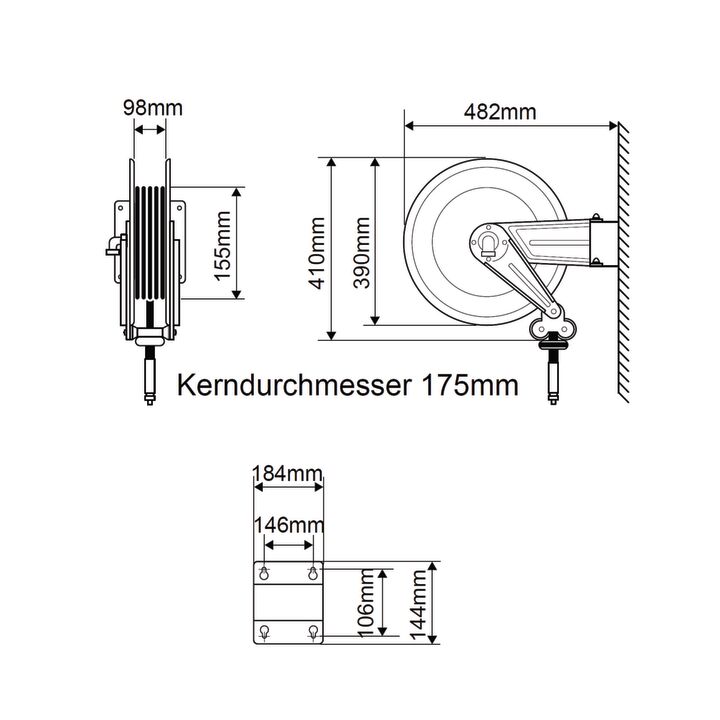

dimensions listed in the data sheet
