Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements. Further features: • automatic spring return with tension spring "Made in Germany"• hose lock to fix the hose in place with each rotation• fixed mounting bracket including drilling template for easy assembly • hose stopper as an end stop with inserts for different hose diameters • high-quality swivel joint angled 90° (see diameter for size) • swivel joint stainless steel 1.4401, ½" F BSP, Viton seal, max. 130°C (note max. hose temperature) roller window adjustable in 3 positions • dimensions listed in the data sheet

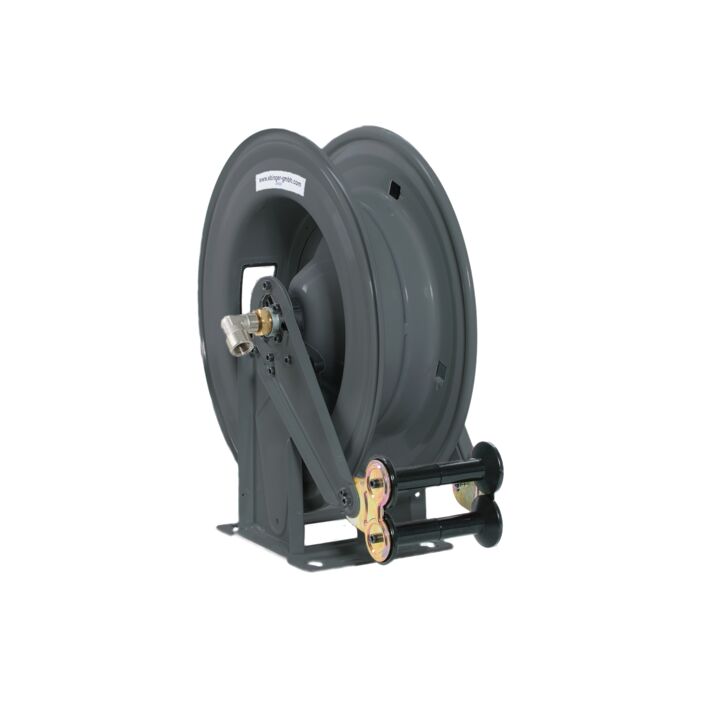

Hose reel OSM 400
Article no.: 1.400.200
• spring return & hose lock
• painted steel casing
• tension spring "Made in Germany"
441,00 €
incl. VAT plus 11,78 € shipping
Shipping in 3-5 days
HS-Code: 73269050
Country of origin: IT
Alternative products
Hose reel OSM 400
803,00 €
Hose reel OSK 400
377,00 €
Matching accessories
Cover plate for locking system
30,00 €
Reverse brake
300,00 €
Automatic hose guide 1/2" - 5/8"
273,00 €

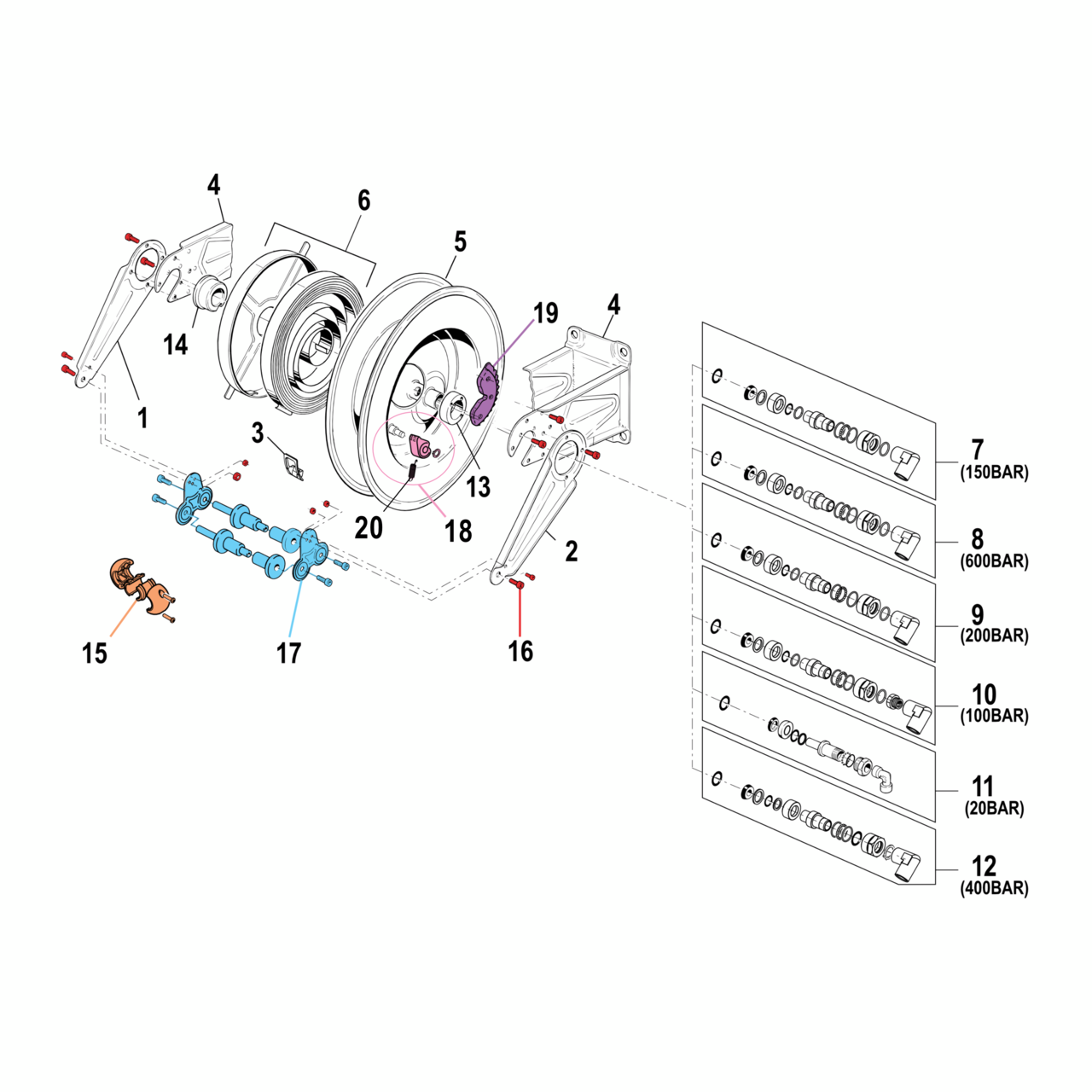

Replacement parts
| # | Article no. | Quantity | |
|---|---|---|---|
| 1 | 015-F587 | 1 | |
| 2 | 015-F589 | 1 | |
| 3 | 015-I142 | 1 | |
| 4 | 015-KC378 | 1 | |
| 5 | 015-KC390 | 1 | |
| 6 | 015-KG166 | 1 | |
| 7 | 015-KG202 | 1 | |
| 8 | 015-KG205 | 1 | |
| 9 | 015-KG697 | 1 | |
| 10 | 015-KG696 | 1 | |
| 11 | 015-KG212 | 1 | |
| 12 | 015-KG224 | 1 | |
| 13 | 015-KG723 | 1 | |
| 14 | 015-KG725 | 1 | |
| 15 | 015-KR8104 | 1 | |
| 16 | 015-KR8105 | 1 | |
| 17 | 015-KR8107 | 1 | |
| 18 | 015-KR8306 | 1 | |
| 19 | 015-KR8307 | 1 | |
| 20 | 015-N035 | 1 |
