Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Further features:

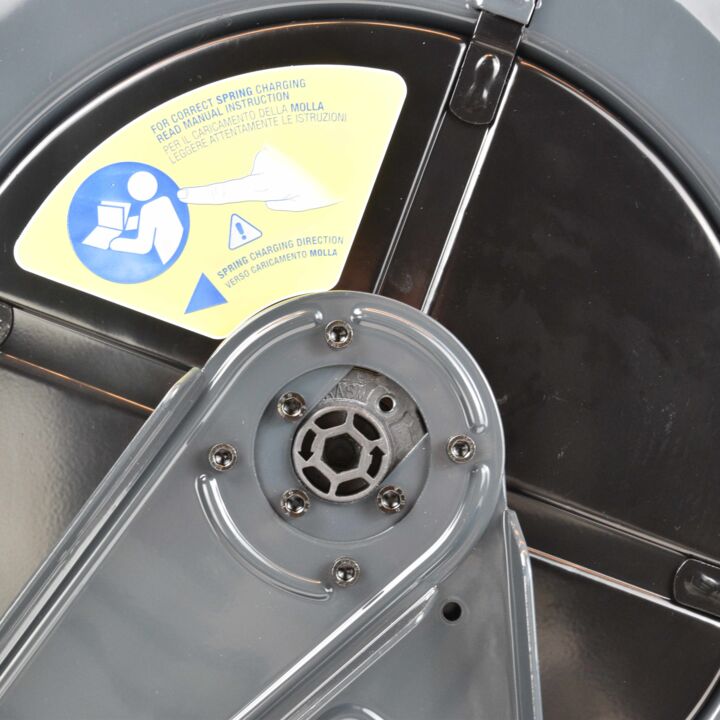

• automatic spring return with tension spring "Made in Germany"

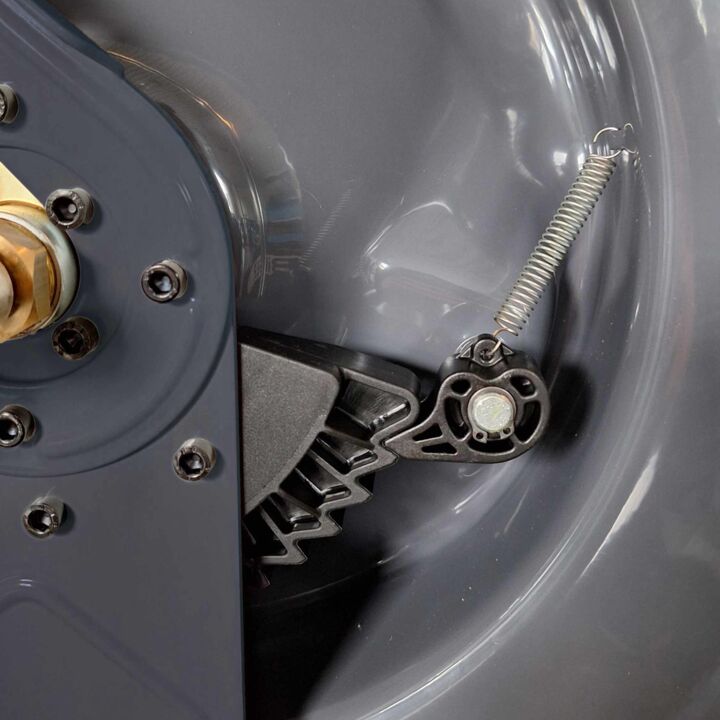

• hose lock to fix the hose in place with each rotation
• swivelling wall bracket with 110° swivel range incl. drilling template for easy installation,

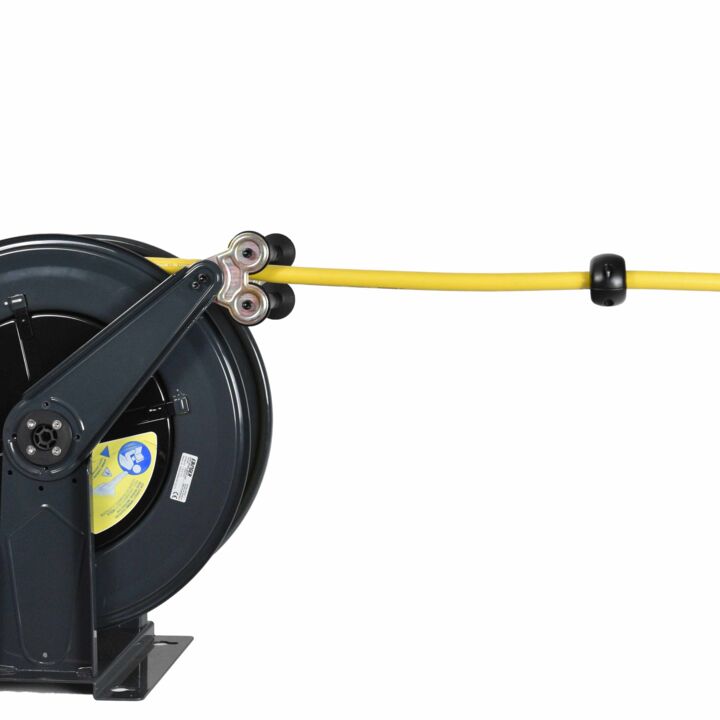

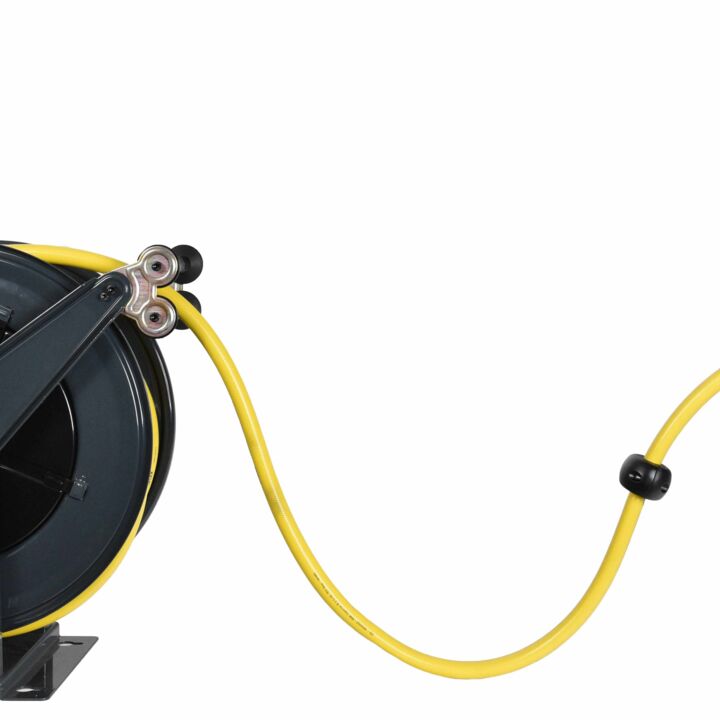

• hose stopper as an end stop with inserts for different hose diameters

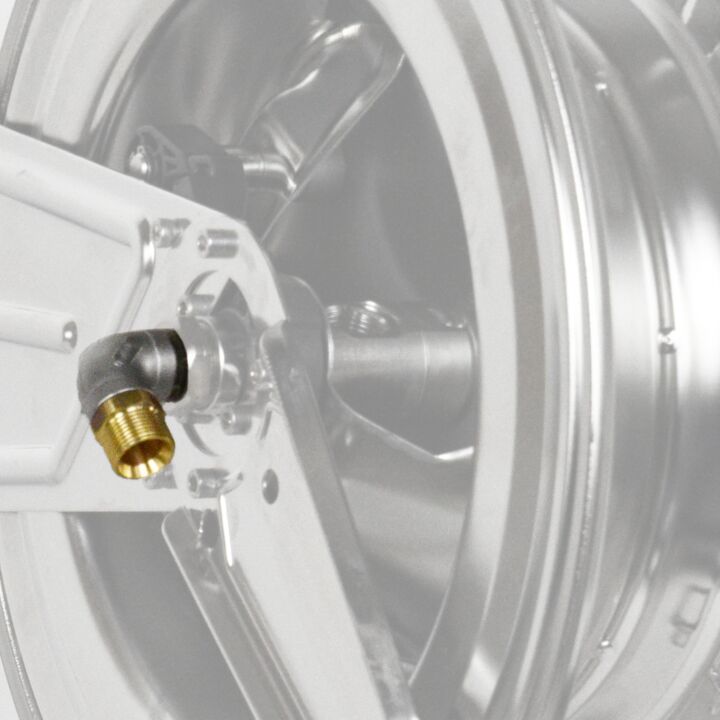

• high-quality swivel joint angled at 90°, Viton seal, max. 130°C (note max. hose temperature)
• connections: Inlet (stainless steel swivel joint): 22 x 1.5 M - outlet (hose): 22 x 1.5 F union nut
• reel window adjustable in 3 positions

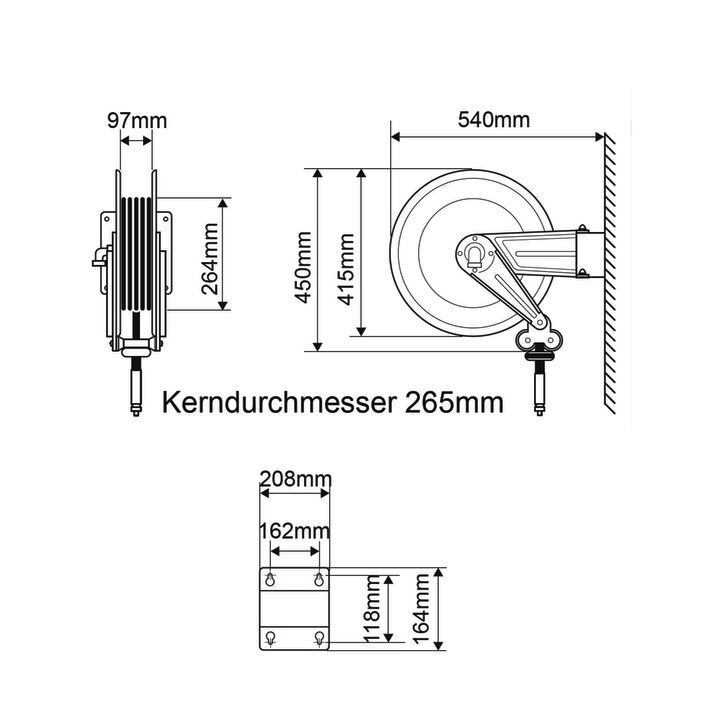

• dimensions listed in the data sheet
Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock. levels.
