Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Additional features:
• automatic spring return with tension spring "Made in Germany"
• hose lock to fix the hose in place with every rotation
• swivel wall bracket with 110° swivel range including drilling template for easy installation
• hose stopper as an end stop with inserts for different hose diameters
• high-quality swivel joint angled 90° (size see diameter)
• swivel joint galvanized steel, ½" F BSP, polyurethane seal, max. 80°C (note max. hose temperature)
• roller window adjustable in 3 positions

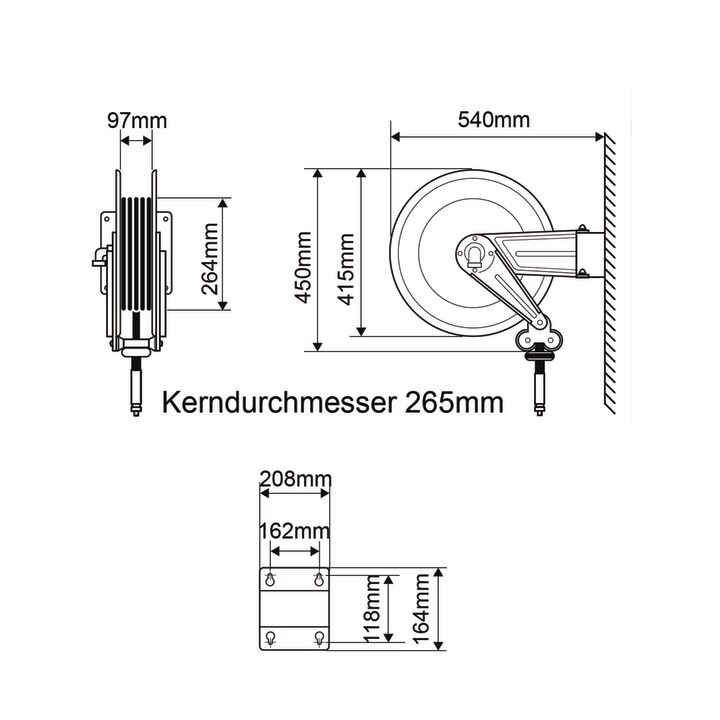

• dimensions listed in the data sheet
Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.
