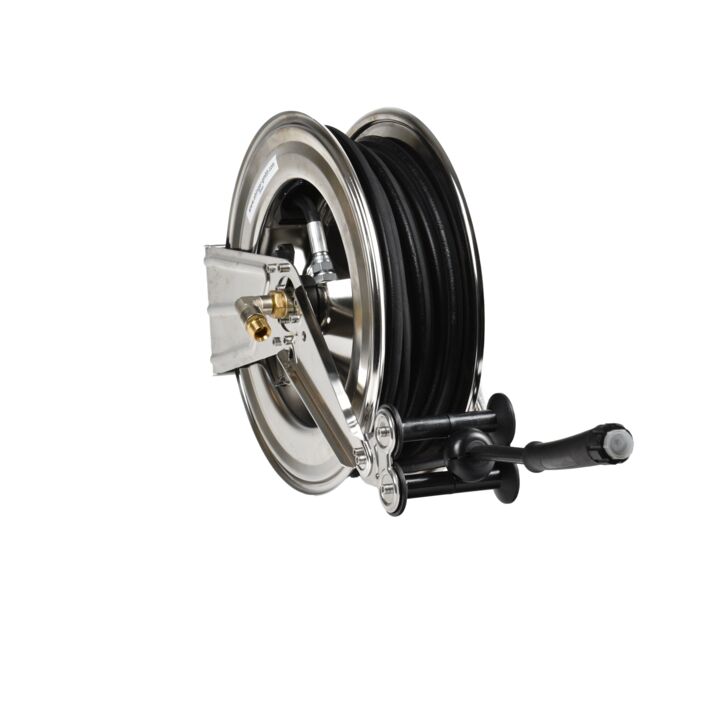

Hose reel OSM 410

Article no.: 1.414.302
Product illustration may differ in individual cases.

• spring return & hose lock
• stainless steel casing
• tension spring "Made in Germany"

1.047,00
incl. VAT plus 11,78  shipping
Delivery time 3-5 days
HS-Code: 73269050
EAN / GTIN: 4260554750202
Country of origin: IT
Shipping weight: 21.1 kg

Technical data

  • Medium High pressure
  • Diameter 8mm (5/16")
  • Casing Stainless steel
  • Drive system Spring return
  • Length/Capacity 20m
  • Pressure 200bar

Description

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.

Further features:
• automatic spring return with tension spring "Made in Germany"
• hose lock to fix the hose with every rotation
• fixed mounting bracket including drilling template for easy installation
• hose stopper as an end stop with inserts for different hose diameters
• high-quality swivel joint angled at 90°, Viton seal, max. 130°C (note max. hose temperature)
• connections: Inlet (stainless steel swivel joint): 22 x 1.5 M - outlet (hose): 22 x 1.5 F union nut
• roller window adjustable in 3 positions

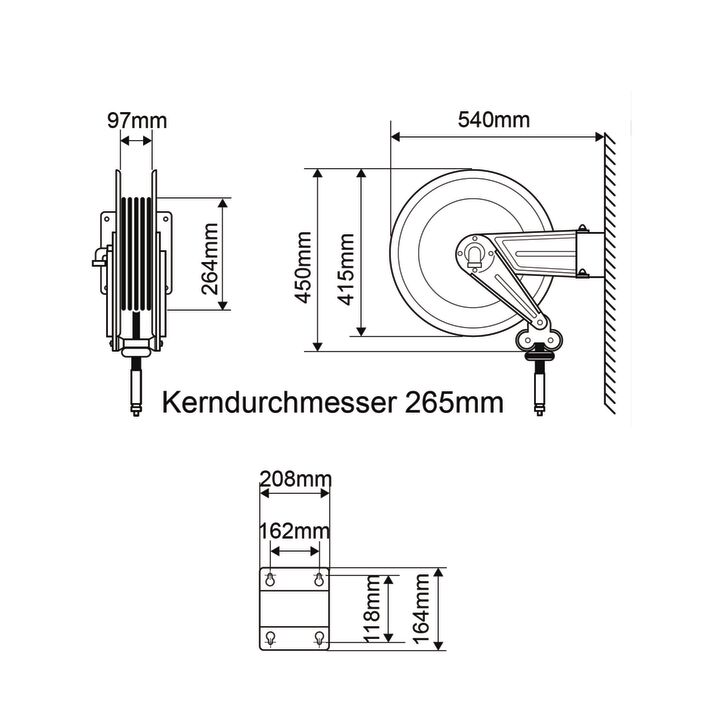

• dimensions listed in the data sheet
