Product illustration may differ in individual cases.

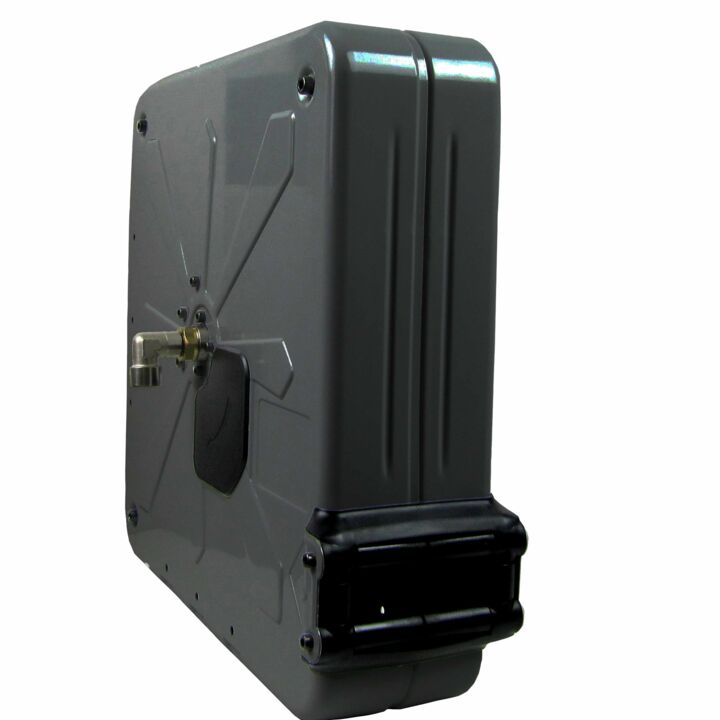

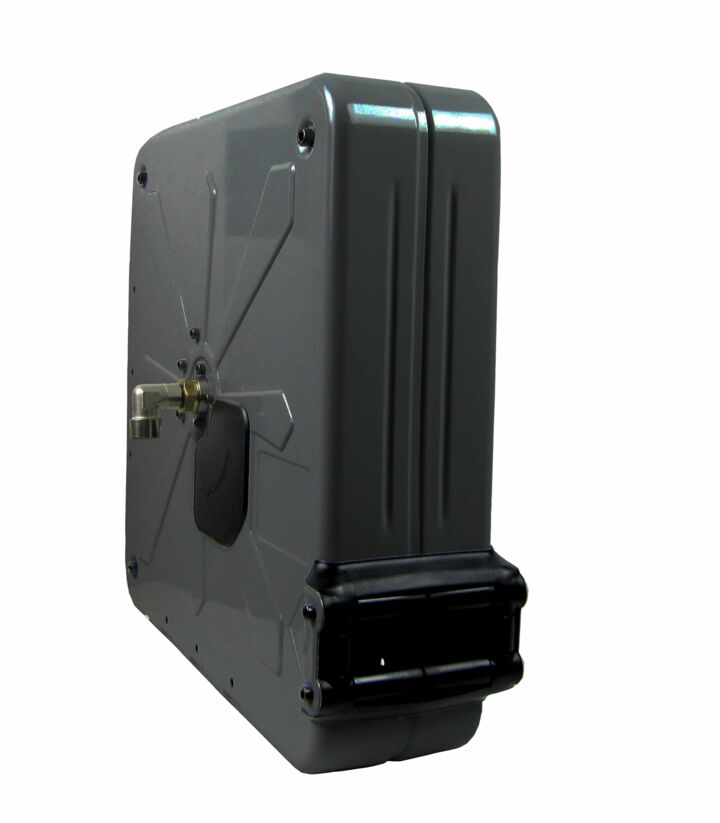

Hose reel OSM 420

Article no.: 1.420.103
Product illustration may differ in individual cases.
597,00 €
incl. VAT plus 11,78 € shipping
Delivery time 3-5 days
HS-Code: 73269050
Country of origin: IT
Shipping weight: 21.1 kg
Back to overview

Technical data

  • Medium Compressed air
  • Diameter 10mm (3/8")
  • Casing Painted steel
  • Drive system Spring return
  • Length/Capacity 20m
  • Pressure 20bar

Description

Spring return, hose lock, fixed mounting bracket, can be mounted in any position.

Illustration: New version in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.

Downloads
