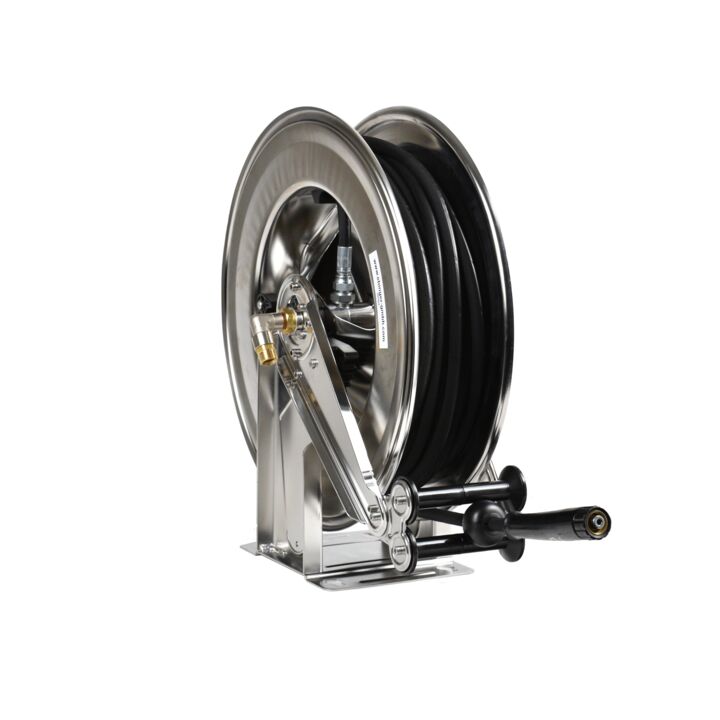

Hose reel OSM 500

Article no.: 1.504.404
Product illustration may differ in individual cases.
1.484,00
incl. VAT plus 47,60  shipping
Delivery time 6-14 days
HS-Code: 73269050
Country of origin: IT
Shipping weight: 0.1 kg

Technical data

  • Medium High pressure
  • Diameter 10mm (3/8")
  • Casing Stainless steel
  • Drive system Spring return
  • Length/Capacity 25m
  • Pressure 400bar

Description

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.

Further features:
Automatic spring return with tension spring "Made in Germany",
hose lock to fix the hose with every rotation,
fixed mounting bracket including drilling template for easy installation,
hose stopper as an end stop with inserts for different hose diameters,
high-quality swivel joint 90° angled (size see diameter),
swivel joint stainless steel 1.4401, 3/8" F BSP, teflon seal, max. 130°C (note max. hose temperature),
roller window adjustable in 3 positions,

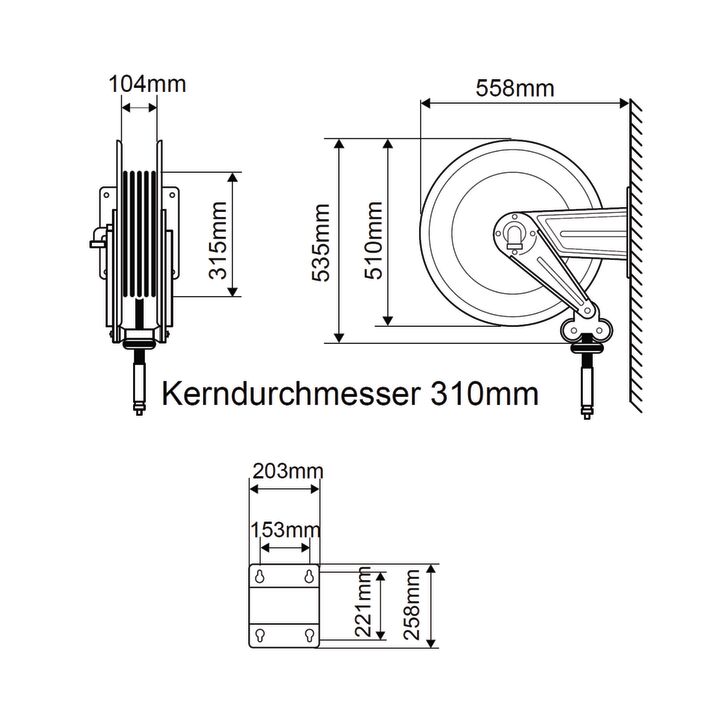

dimensions listed in the data sheet
