Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Further features:
Automatic spring return with tension spring "Made in Germany",
2 media guides with connection on the right + left,
hose lock to fix the hose with every rotation,

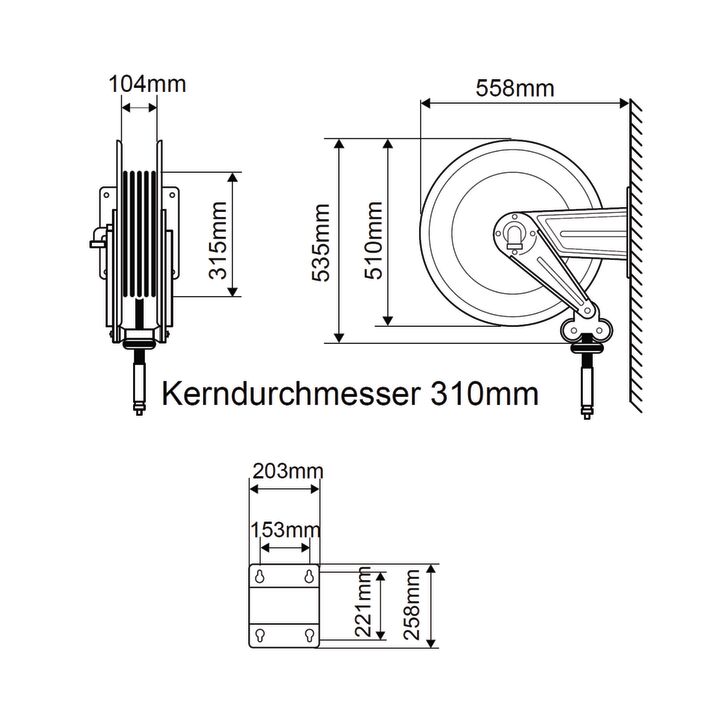

fixed mounting bracket including drilling template for easy assembly,
hose stopper as an end stop with inserts for different hose diameters,
high-quality swivel joint 90° angled (size see diameter), galvanized steel swivel joint, 2 connections 3/8" F BSP, polyurethane seal, max. 80°C (note max. temperature of hose),
roller window adjustable in 3 positions

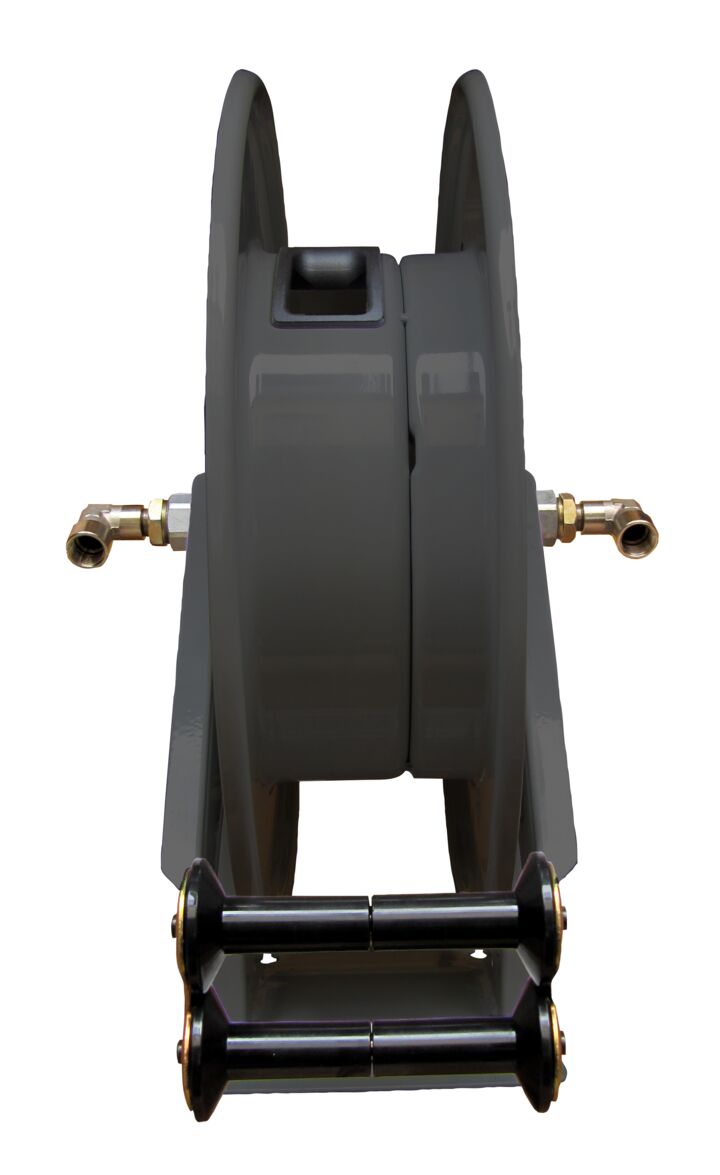

Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock lev
els.
