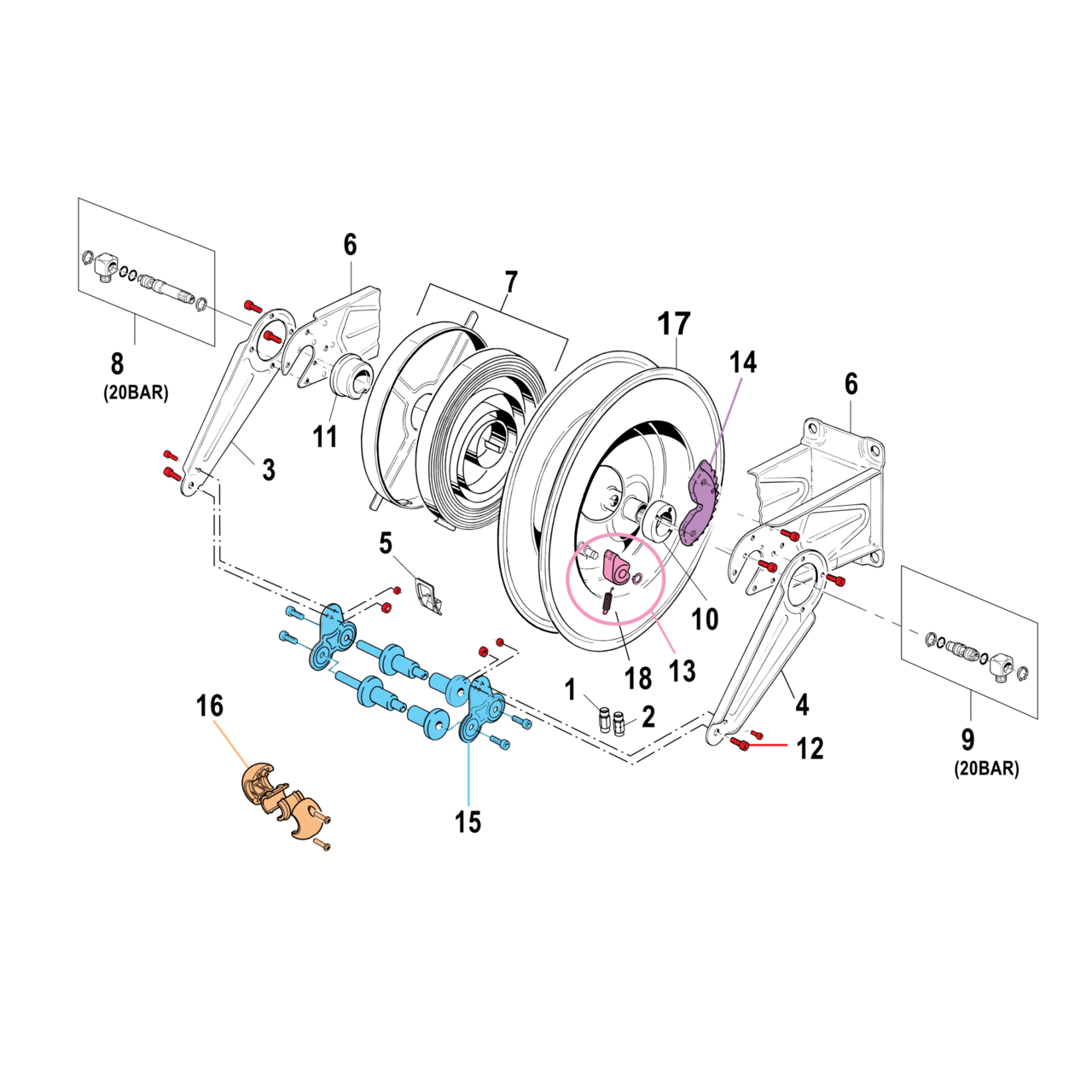

Product illustration may differ in individual cases.

Hose reel OSM 500 Gas

Article no.: 1.500.702

• Spring return & hose lock
• Painted steel casing
• Tension spring "Made in Germany"

922,00
incl. VAT plus 47,60  shipping
Delivery time 15-30 days
HS-Code: 73269050
Country of origin: IT

Technical data

  • Medium Gas
  • Diameter 10mm (3/8")
  • Casing Painted steel
  • Drive system Spring return
  • Length/Capacity 15m
  • Pressure 20bar

Description

Our spring-return hose reels are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a durable, reliable solution for a wide range of requirements.

Further features:
• automatic spring retraction with tension spring "Made in Germany"
• media guide especially for LPG, methane, propane, butane (other gases on request)
• hose lock to secure the hose with each rotation
• fixed mounting bracket including drilling template for easy assembly
• hose stopper as end stop with inserts for different hose diameters
• high-quality swivel joint angled 90° (size see diameter)
• brass swivel joint, 2 connections 3/8"M BSP right + 3/8"M BSP left, Viton seal,
• roller window adjustable in 3 positions
• dimensions listed in the data sheet

Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock.
