Hose reel OSM 510

Article no.: 1.510.303
Product illustration may differ in individual cases.
869,00
incl. VAT plus 47,60  shipping
Delivery time 6-14 days
HS-Code: 73269050
Country of origin: IT
Shipping weight: 20.1 kg

Technical data

  • Medium High pressure
  • Diameter 8mm (5/16")
  • Casing Painted steel
  • Drive system Spring return
  • Length/Capacity 25m
  • Pressure 200bar

Description

Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.

Further features:
Automatic spring return with tension spring "Made in Germany",
hose lock to fix the hose in place with each rotation,
fixed mounting bracket including drilling template for easy assembly,
hose stopper as an end stop with inserts for different hose diameters,
high-quality swivel joint angled 90° (see diameter for size),
swivel joint stainless steel 1.4401, 3/8" F BSP, viton seal, max. 130°C (note max. hose temperature)
reel window adjustable in 3 positions,
dimensions listed in the data sheet

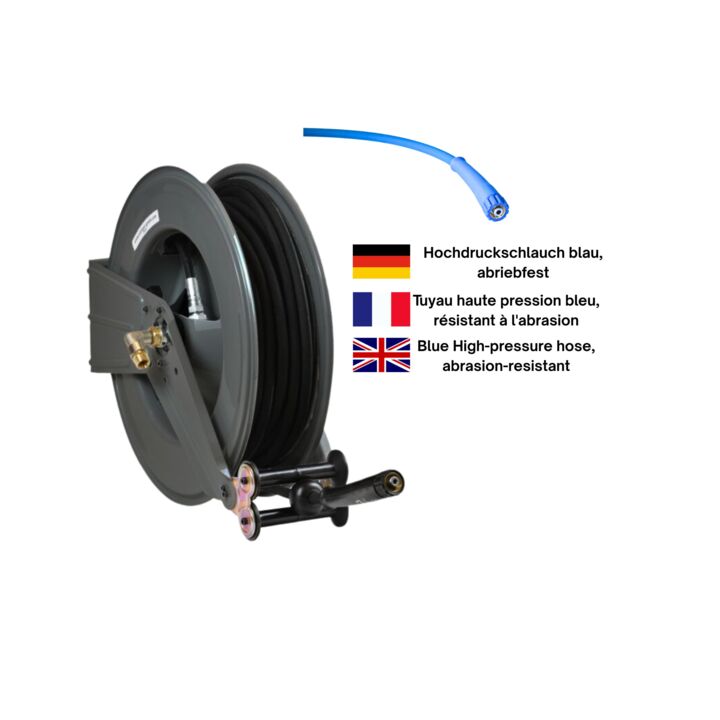

Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.
