Our spring-return hose reels are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a durable, reliable solution for a wide range of requirements.
• automatic spring return with tension spring "Made in Germany"
• media guide especially for LPG, methane, propane, butane (other gases on request)
• hose lock to secure the hose with each rotation
• fixed mounting bracket including drilling template for easy assembly
• hose stopper as end stop with inserts for different hose diameters
• connections: Inlet (swivel joint): 1st side: 3/8"M left-hand thread, 2nd side: 3/8"M right-hand thread
• connections: Outlet (axle): 1st side: 3/8 "M left-hand thread, 2nd side: 3/8"M right-hand thread
• roller window adjustable in 3 positions
• dimensions listed in the data sheet

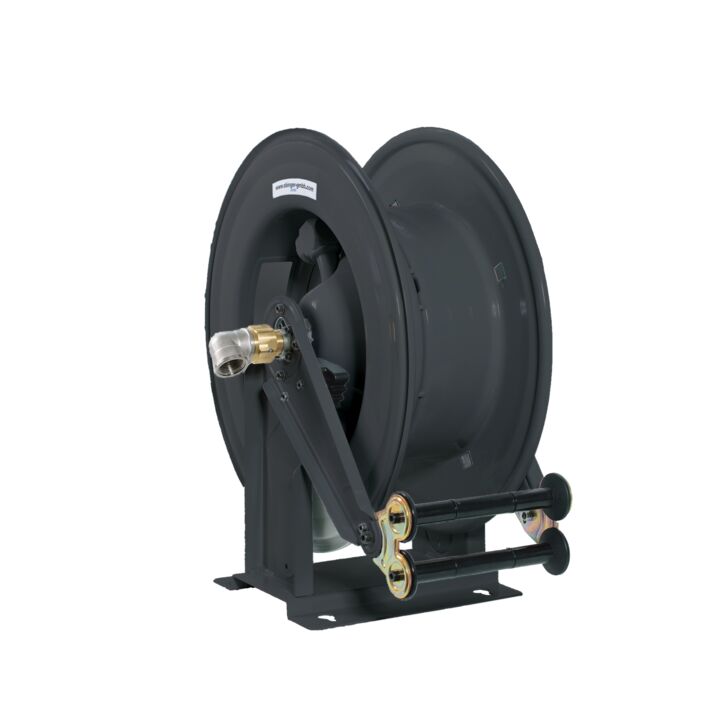

Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock.
