Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Additional features:
• automatic spring return with tension spring "Made in Germany"

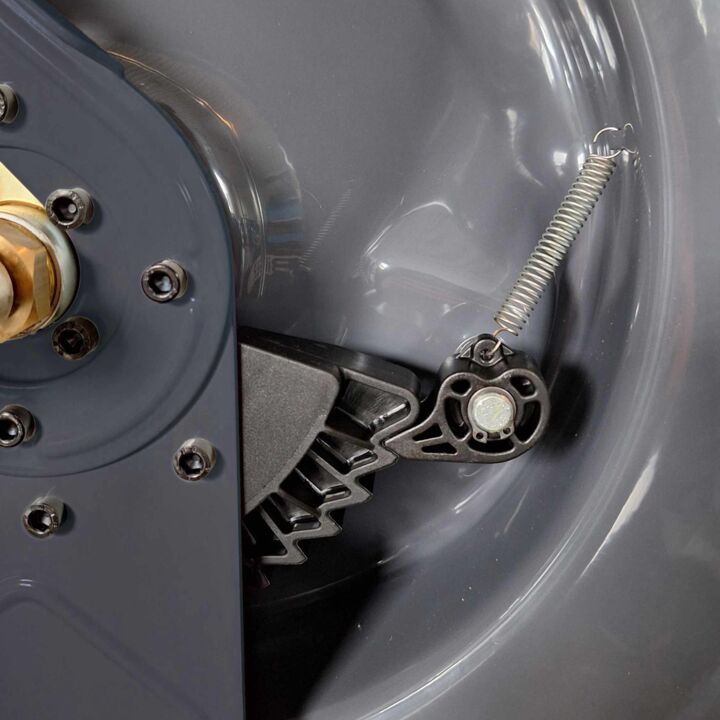

• hose lock to fix the hose in place with each rotation
• fixed mounting bracket including drilling template for easy assembly
• hose stopper as an end stop with inserts for different hose diameters
• high-quality swivel joint 90° angled (see diameter for size)
• nickel-plated brass swivel joint, 1" F BSP, Viton seal, max. 90°C (note max. hose temperature)
• roller window adjustable in 3 positions
• dimensions listed in the data sheet

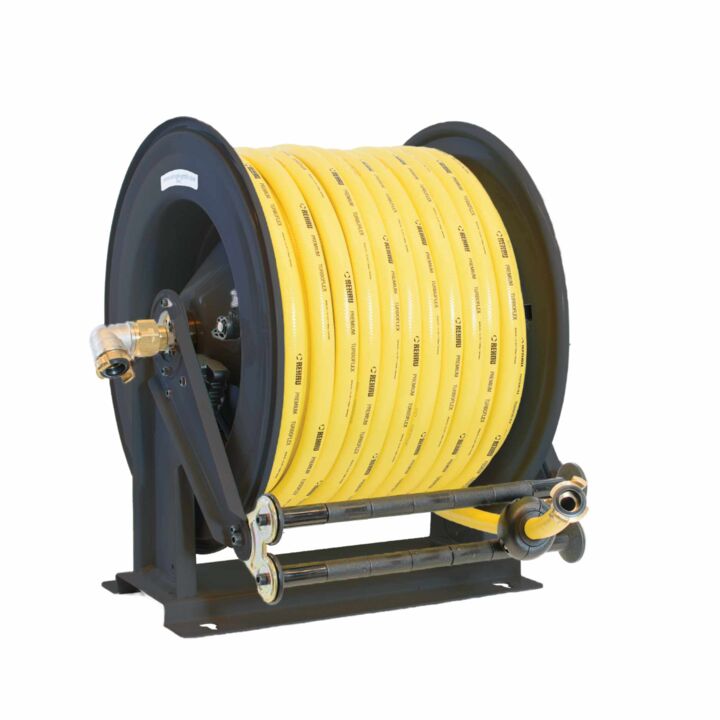

Illustration: New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.
