Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Additional features:
Automatic spring return with tension spring "Made in Germany",
hose lock to fix the hose in place with each rotation,
fixed mounting bracket including drilling template for easy assembly,
hose stopper as an end stop with inserts for different hose diameters,
high-quality swivel joint 90° angled (see diameter for size),
nickel-plated brass swivel joint, 1" F BSP, Viton seal, max. 90°C (note max. hose temperature),

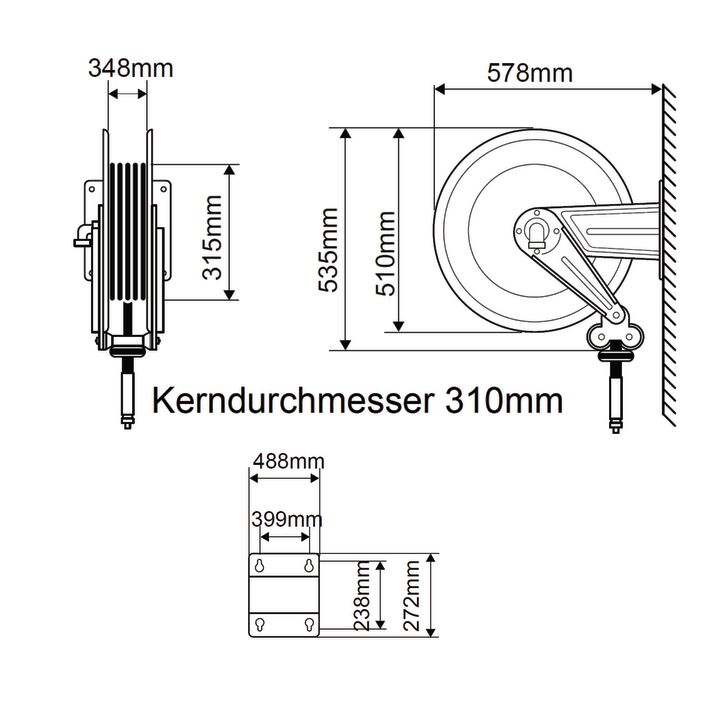

roller window adjustable in 3 positions, dimensions listed in the data sheet Illustration:
New variant in RAL 7016 (anthracite) - as part of the color change, the old version in RAL 7035 (light gray) will still be delivered depending on stock levels.
