Our hose reels with spring return are specially designed for professional and industrial use. High-quality components and a wide range of accessories enable adaptation to all work areas and applications. With a robust and precise design, they offer a long-lasting, reliable solution for a wide range of requirements.
Additional features:

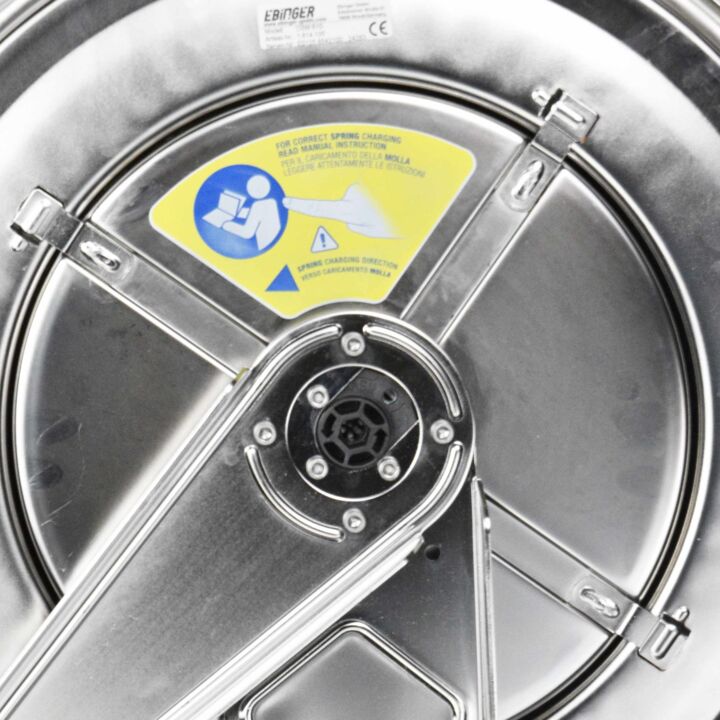

• automatic spring return with tension spring "Made in Germany"
• hose lock to fix the hose in place with each rotation
• fixed mounting bracket including drilling template for easy assembly
• high-quality swivel joint 90° angled, nickel-plated brass, Viton seal, max. 90°C (note max. hose temperature)
• connections: Input (swivel joint): Plug NW 7.2 - Outlet (hose): Coupling NW 7.2
• swivel joint galvanized steel, ½" F BSP, viton seal, max. 90°C (note max. temperature of hose)
• roller window adjustable in 3 positions

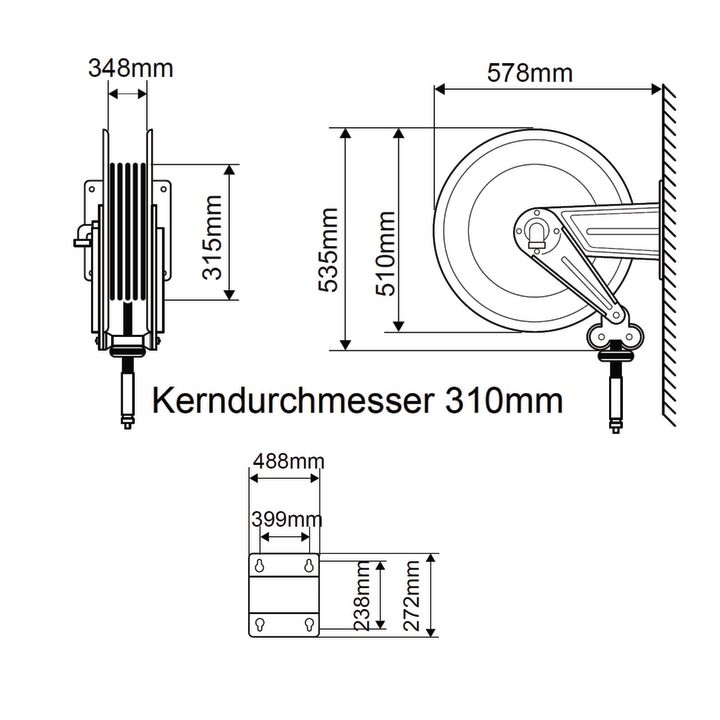

• dimensions listed in the data sheet
