Irrigation trolleys from Ebinger GmbH

The irrigation trolley from Ebinger GmbH is designed for professional use. It has hose lengths from 31m to 200m and various hose diameters. The water throw range is designed for professional irrigation. The Ebinger GmbH irrigation trolley can be used in horticulture, agriculture, parks and sports facilities as well as riding arenas and halls, for example.

Irrigation trolleys

Do you have any questions?

We will be happy to get in touch with you. By e-mail, telephone or WhatsApp.

Contact by e-mail

Please add 7 and 9.

Write via WhatsApp

Irrigation trolley LEADER 20

Cold water 19mm (3/4") Painted steel Water turbine 40m 4bar
40m - 3/4" PVC hose, throw distance 10m at 4bar
1.416,00
Article no.: 5.000.080

Watering trolley LEADER 25

Cold water 19mm (3/4") Painted steel Water turbine 50m 4bar
50m - 3/4" PE hose, throw distance 12m at 4bar
3.035,00
Article no.: 5.000.100

Watering trolley LEADER 10

Cold water 19mm (3/4") Painted steel Water turbine 30m 4bar
30m - 3/4" PVC hose, 360° sprinkler, throw distance 10m at 4bar
1.178,00
Article no.: 5.000.050

Watering trolley LEADER 32

Cold water 25mm (1") Painted steel Water turbine 70m 5,5bar
70m - 1" PE hose, throw distance 16m at 4.5bar
3.510,00
Article no.: 5.000.200

Irrigation trolley LEADER 40

Cold water 32mm (1 1/4") Painted steel Water turbine 120m 5,5bar
120m - 1 1/4" PE hose, throw distance 19m at 5.5bar
5.891,00
Article no.: 5.000.300

Watering trolley LEADER 50

Cold water 40mm (1 1/2") Painted steel Water turbine 180m 6bar
180m - 1 1/2" PE hose, throw distance 25m at 6bar
8.628,00
Article no.: 5.000.410

Watering trolley LEADER 63

Cold water 50mm (2") Painted steel Water turbine 110m 6bar
110m - 2" PE hose, throw distance 25m at 6bar
8.866,00
Article no.: 5.000.420

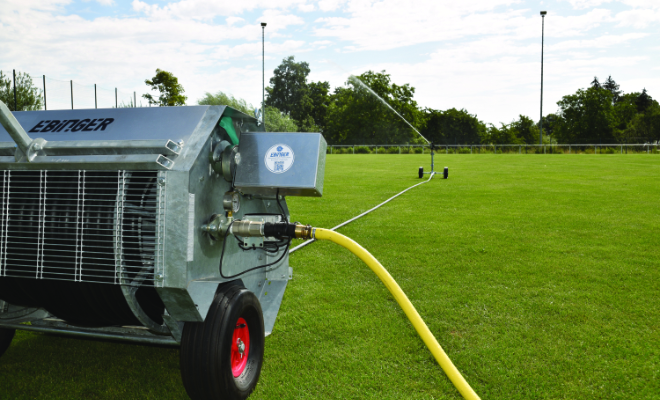

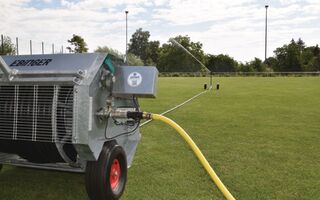

Electric irrigation cart E-Rain 40-140

Cold water 32mm (1 1/4") Galvanized steel Electric motor 24V 140m 6bar
140m PE pipe 1 1/4" ID, throw distance 25m at 3bar
4.490,00
Article no.: 5.340.140

Electric irrigation cart E-Rain 40-200

Cold water 32mm (1 1/4") Galvanized steel Electric motor 24V 200m 6bar
200m PE pipe 1 1/4" ID, throw distance 25m at 3bar
5.290,00
Article no.: 5.340.200

Electric irrigation cart E-Rain 50-150

Cold water 40mm (1 1/2") Galvanized steel Electric motor 24V 150m 6bar
150m PE pipe 1 1/2" ID, throw distance 27m at 3bar
5.490,00
Article no.: 5.350.150

Criteria for selecting an irrigation trolley

For which area should the irrigation trolley be used?

Our automatic irrigation carts are used in the following areas:

  • Irrigation of riding and sports grounds
  • Irrigation of golf courses and parks
  • Cultivated areas in agriculture
  • Gardens

Which area should be irrigated?

Our range includes watering carts for watering areas up to 200 metres long and 50 metres wide.

What requirements must be met?

Irrigation trolley type Leader:

  • Leader watering carts are driven by water pressure via a turbine and therefore do not require an external power supply
  • a water pressure of between 3 and 5.5 bar (depending on the variant) must therefore be available directly at the device to ensure the turbine drive

Irrigation trolley type E-Rain

  • unlike the Leader, the E-Rain is driven by a 24V electric motor and runs independently of the available working pressure.
  • A rechargeable battery with solar module enables autonomous use throughout the working day, as the sunlight provides a permanent and environmentally friendly charge.
    For use in covered halls or in environments with little sunlight, the E-Rain can be charged via the mains supply (charger with device connection is available as an option)

What are the advantages of using it?

  • Automatic water switch-off at the end of the irrigation time
  • Mobile and flexible in use
  • Easy operation and short set-up times
  • Sector sprinkler with adjustable irrigation width



Order irrigation trolleys and irrigation carts online

Search and find the right irrigation trolley for your application. Filter conveniently until you have found your desired product. Simply order online or by telephone. Our customer service team will be happy to help you on +49 6323 / 937 465 0.
